// 라즈베리파이 스펙

en.wikipedia.org/wiki/Raspberry_Pi

모델

1 B

2 B

3 B

3 B+

4 B

출시

2012

2015

2016

2018

2019

ISA

ARMv6Z (32-bit)

ARMv7-A (32-bit)

ARMv8-A (64/32-bit)



SoC (Broadcom)

BCM2835

BCM2836

BCM2837

BCM2837B0

BCM2711

CPU

1× ARM1176JZF-S
 700 MHz

4× Cortex-A7
 900 MHz

4× Cortex-A53
 1.2 GHz

4× Cortex-A53
 1.4 GHz

4× Cortex-A72
 1.5 GHz

GPU

Broadcom VideoCore IV @ 250 MHz

VI @ 500 MHz

RAM

512 MiB

1 GiB

1, 2 or 4 GiB

USB

2.0

3.0

Power

5 V via MicroUSB or GPIO header

USB-C

Size

85.60 mm × 56.5 mm



85.60 mm × 56.5 mm × 17 mm

Weight

45 g

46 g

Ethernet

10/100 Mbit/s





10/100/1000 Mbit/s



WiFi





2.4 GHz

2.4/5 GHz



Bluetooth





4.1 BLE

4.2 LS BLE

5.0

Video input

15-pin MIPI camera interface (CSI)

Video outputs

HDMI, composite , DSI

HDMIx2

Audio Input











Audio Output

 3.5 mm phone jack;

Storage

SD

MicroSDHC

주변장치

8× GPIO

17× GPIO

//

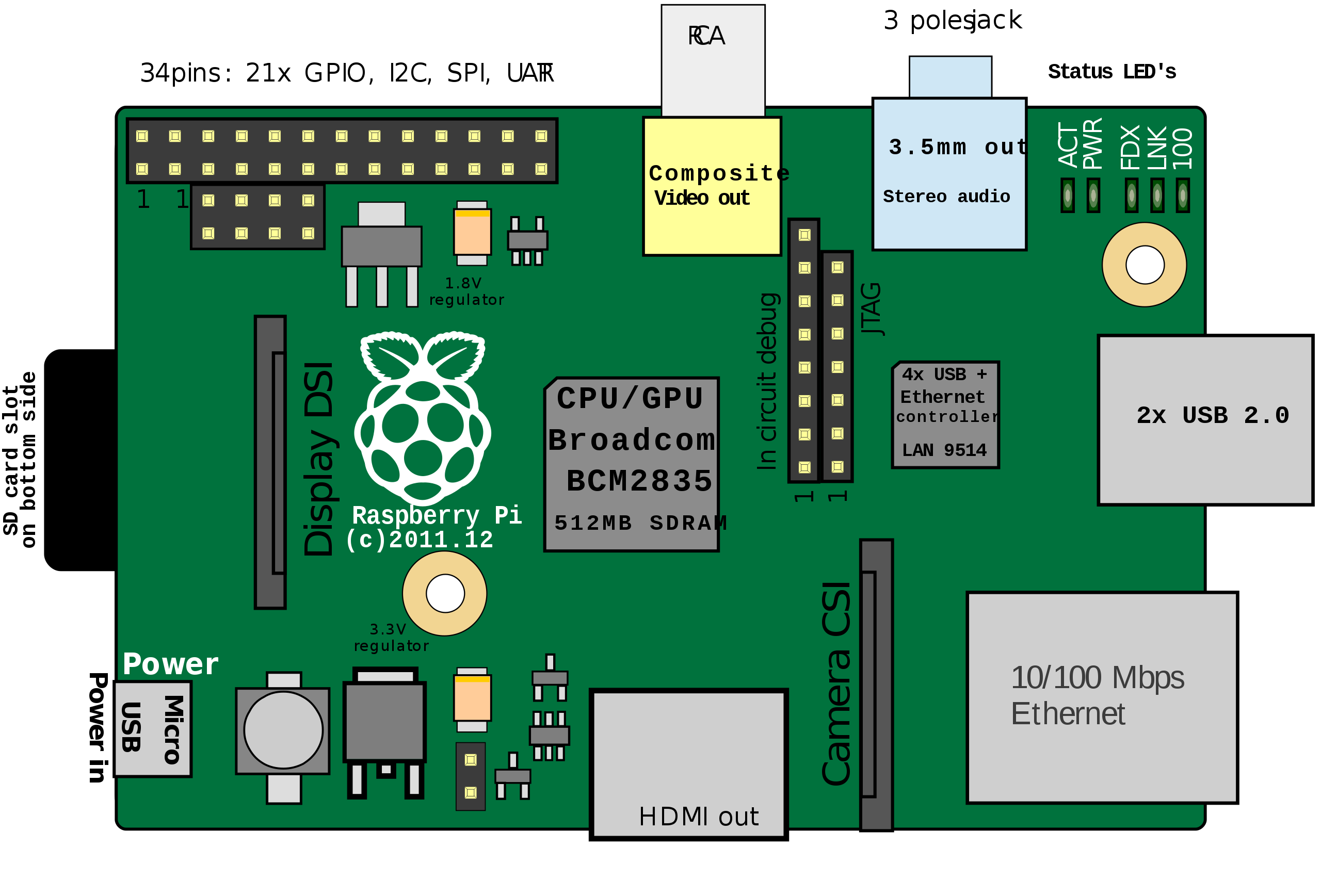

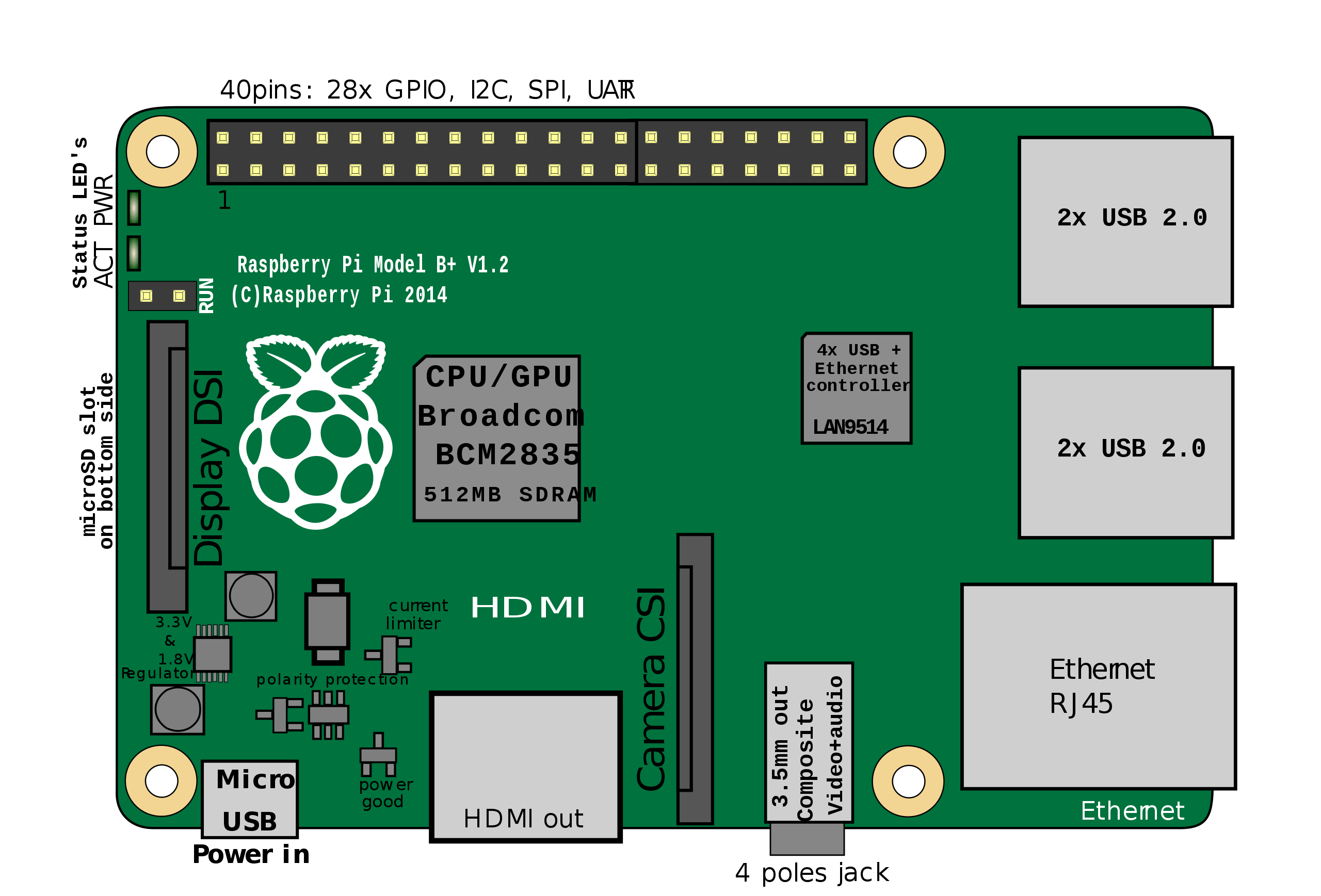

Raspberry Pi 1 B



Raspberry Pi 2 B
Raspberry Pi 3 B

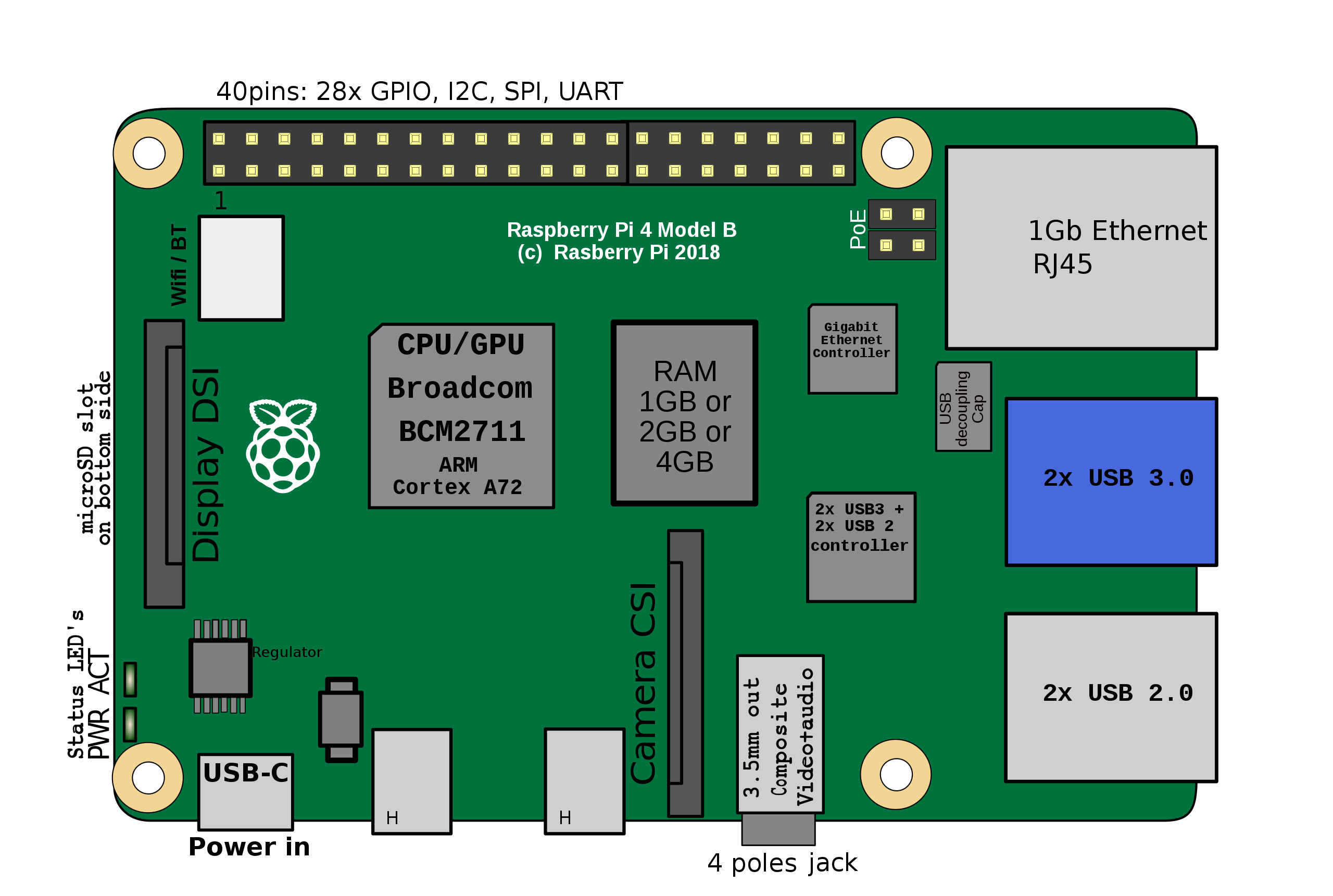

Raspberry Pi 4 B

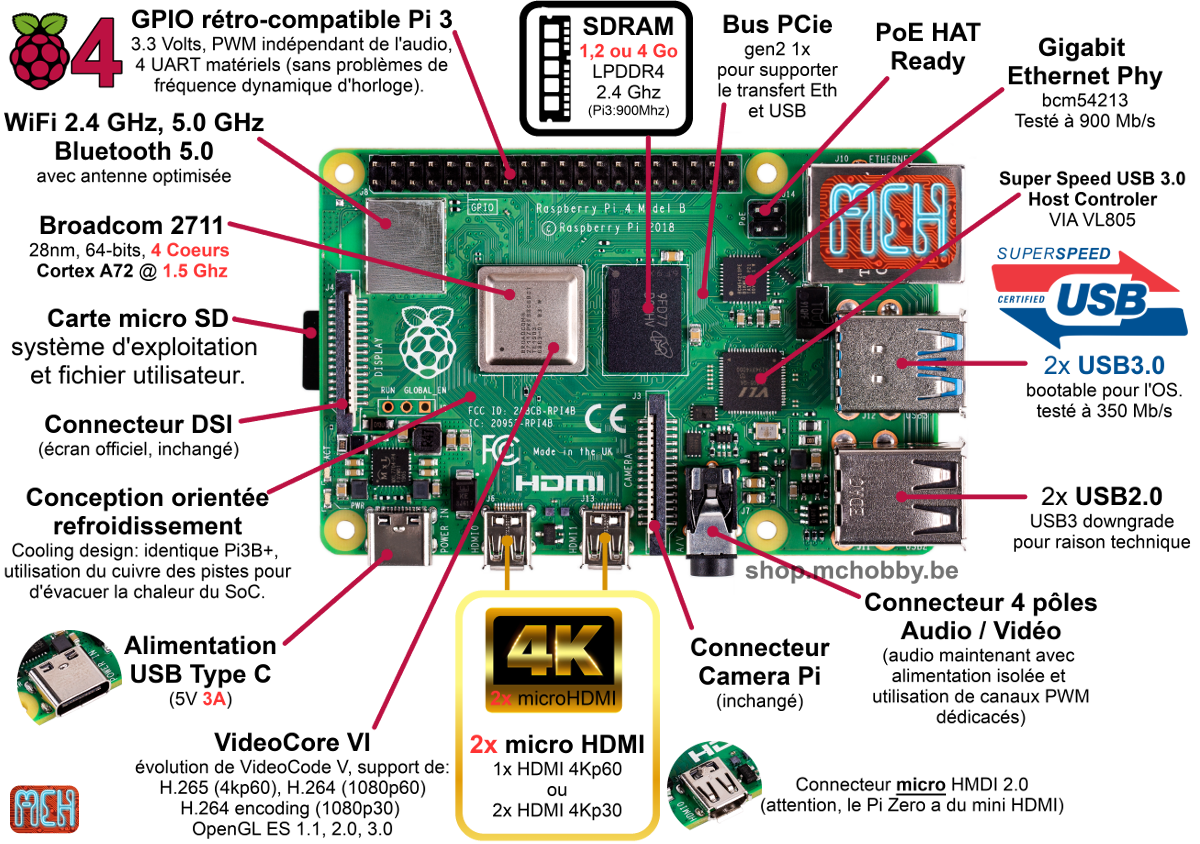

Raspberry Pi 4 B



//---------------------------------------------------

고화질 사진 - 클릭하시면 확대됩니다.

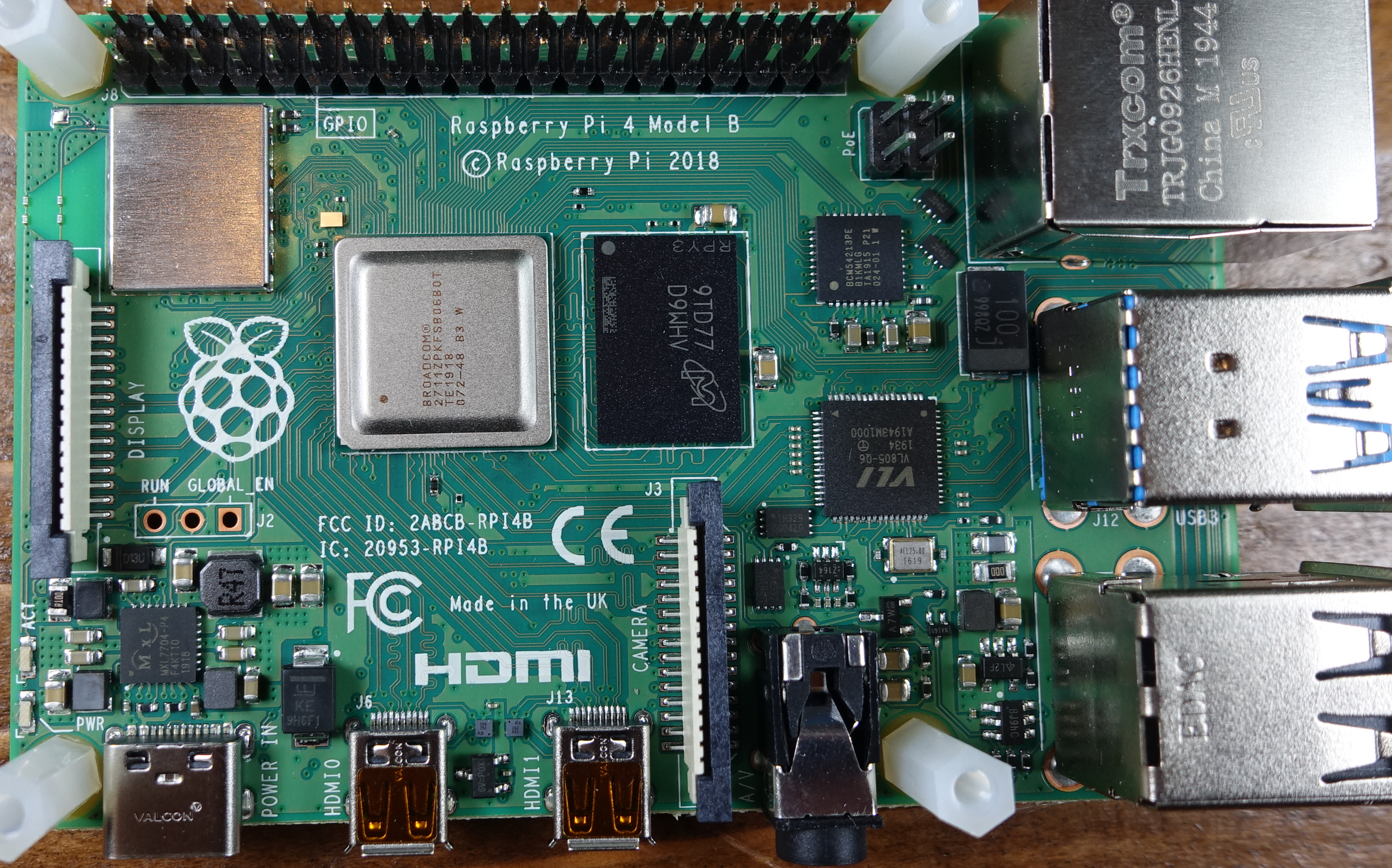

Raspberry Pi 4 Model B (2337 x 1458)

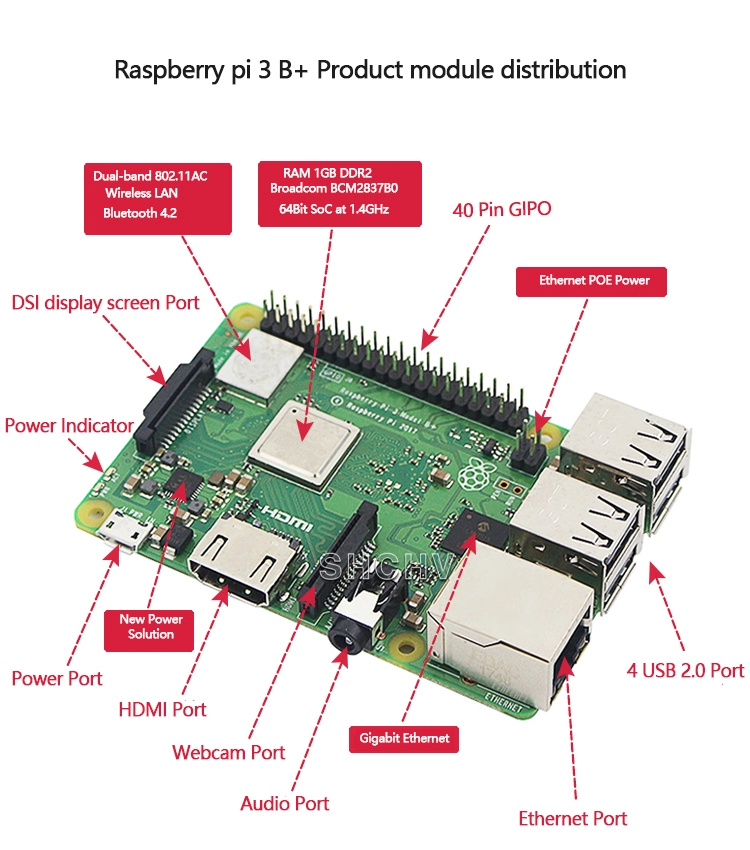

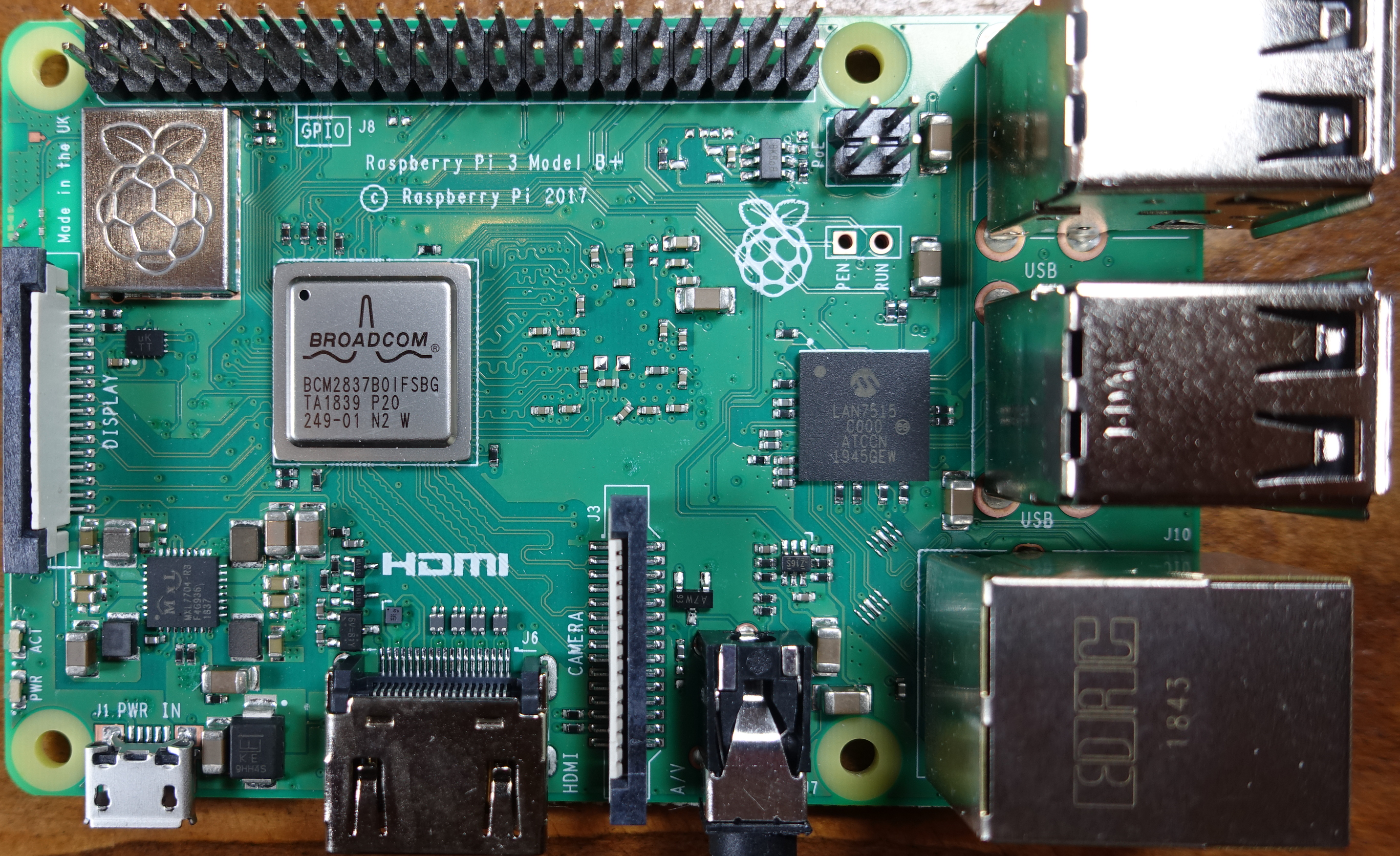

Raspberry Pi 3 Model B+ (2865x 1752)

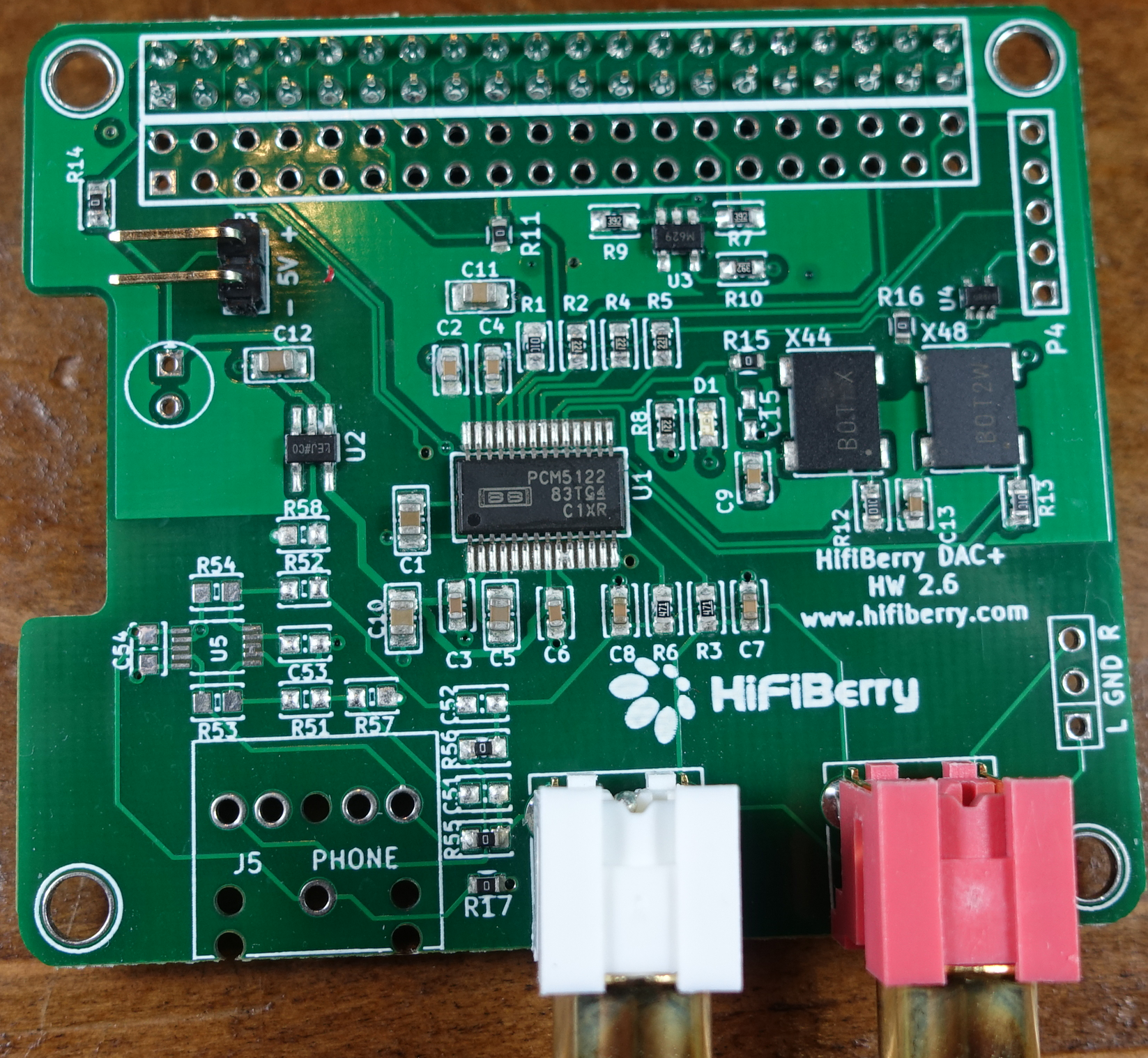

HifiBerry DAC+ Pro  (1647 x 1518)

//
