// 라즈베리파이 DAC



HiFiBerry 제품 비교표

www.devicemart.co.kr/goods/view?no=1279155#goods_description
//

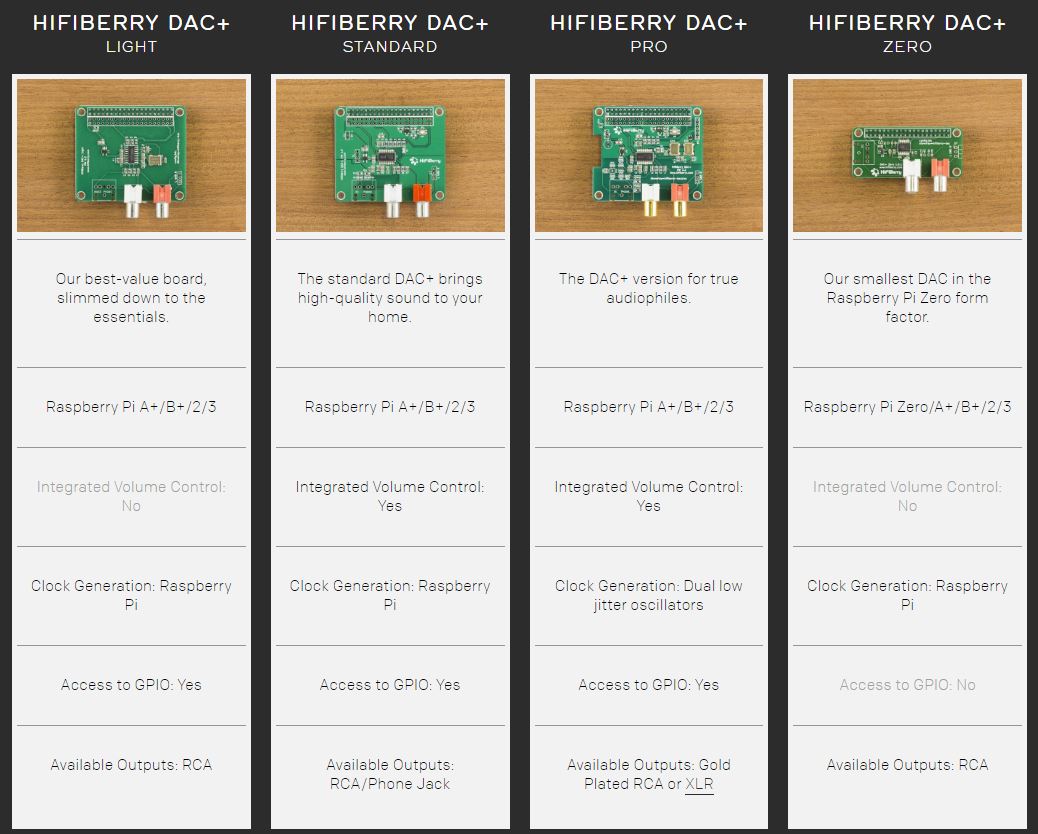

HiFiBerry board 기능 비교 차트



DAC+ Light

DAC+

DAC+ Pro

Digi+ standard

Digi+ transformer

Amp+

Amp2

Sample rates

44.1-192kHz

44.1-48kHz

최대 192kHz

Analog output

Line out 2Vrms

X

최대 2 x 25W

60W

Digital output

X

SPDIF

X

출력 단자

2 x RCA

2 x RCA 또는
3.5mm


2 x gold-plated RCA

TOSLink and RCA

TOSLink and
독립(절연) RCA

screw terminals

Chipset

ESS

Burr-Brown

Burr-Brown + Xpresso

Cirrus

Cirrus

Texas Instruments

통합 볼륨 컨트롤

X

O

O

X

X

O

O

라즈베리파이 HAT

X

O

O

O

O

X

X

GPIO 연결(연결 가이드 링크)

가능(40개의 핀헤더 납땜 가능)

가능

전원 공급

라즈베리파이에서 직접 전원 공급 가능

라즈베리파이로부터 전원 공급, 또는 별도의 전원 공급 가능

라즈베리파이에서 직접 전원 공급 가능

외부 12-18V, 또는 라즈베리파이

외부 12-24V, 또는 라즈베리파이

부가 기능



외부 I2S DACs 위한 클럭 제네레이터로 사용 가능





//

//-------------------

HiFiBerry DAC+ Pro DATASHEET

https://www.hifiberry.com/docs/data-sheets/datasheet-dac-pro/



DAC chipset Model : PCM5122

    - Dedicated 192kHz/24bit high-quality Burr-Brown DAC





//-------------------

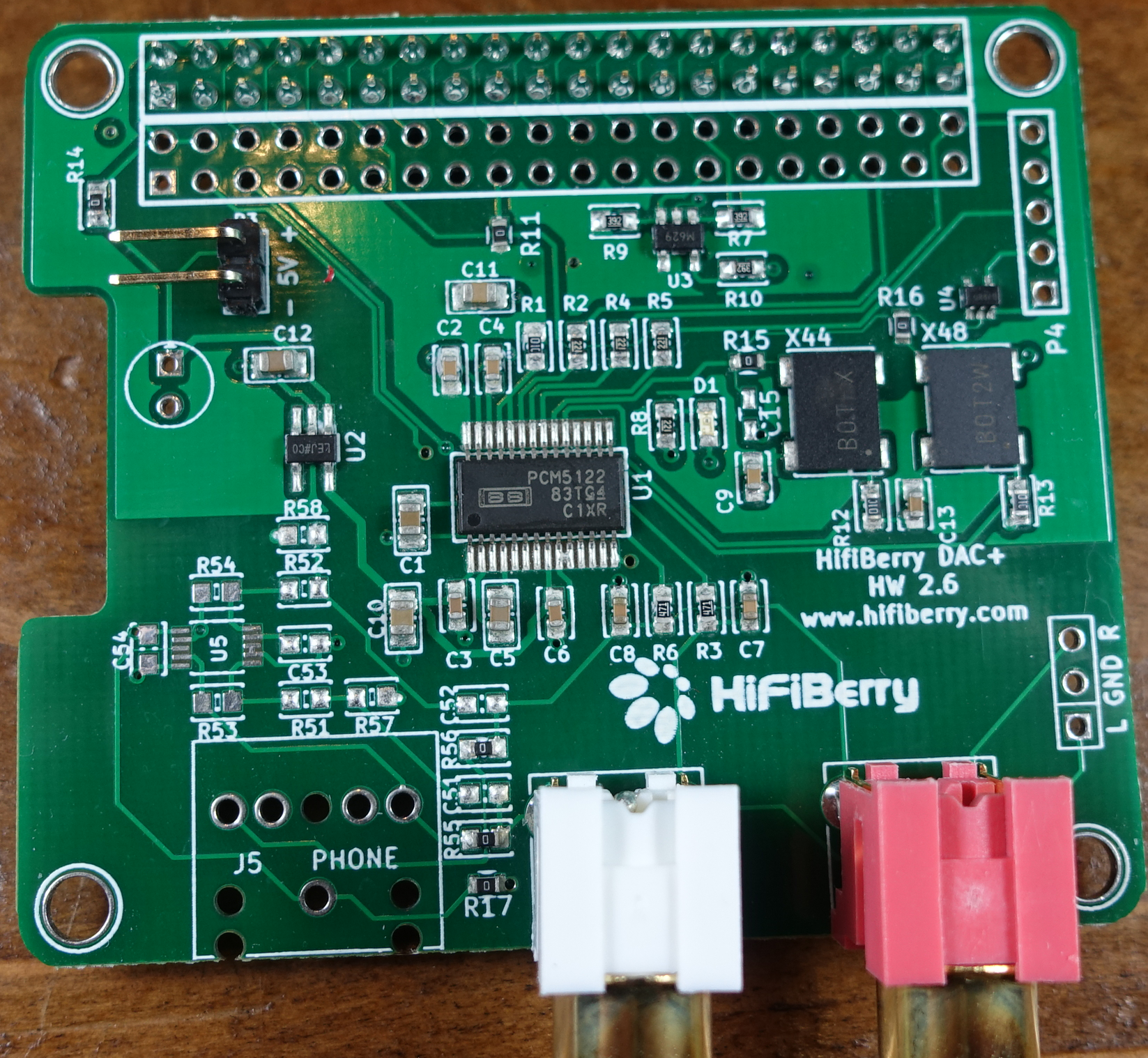

HiFiBerry DAC+ standard

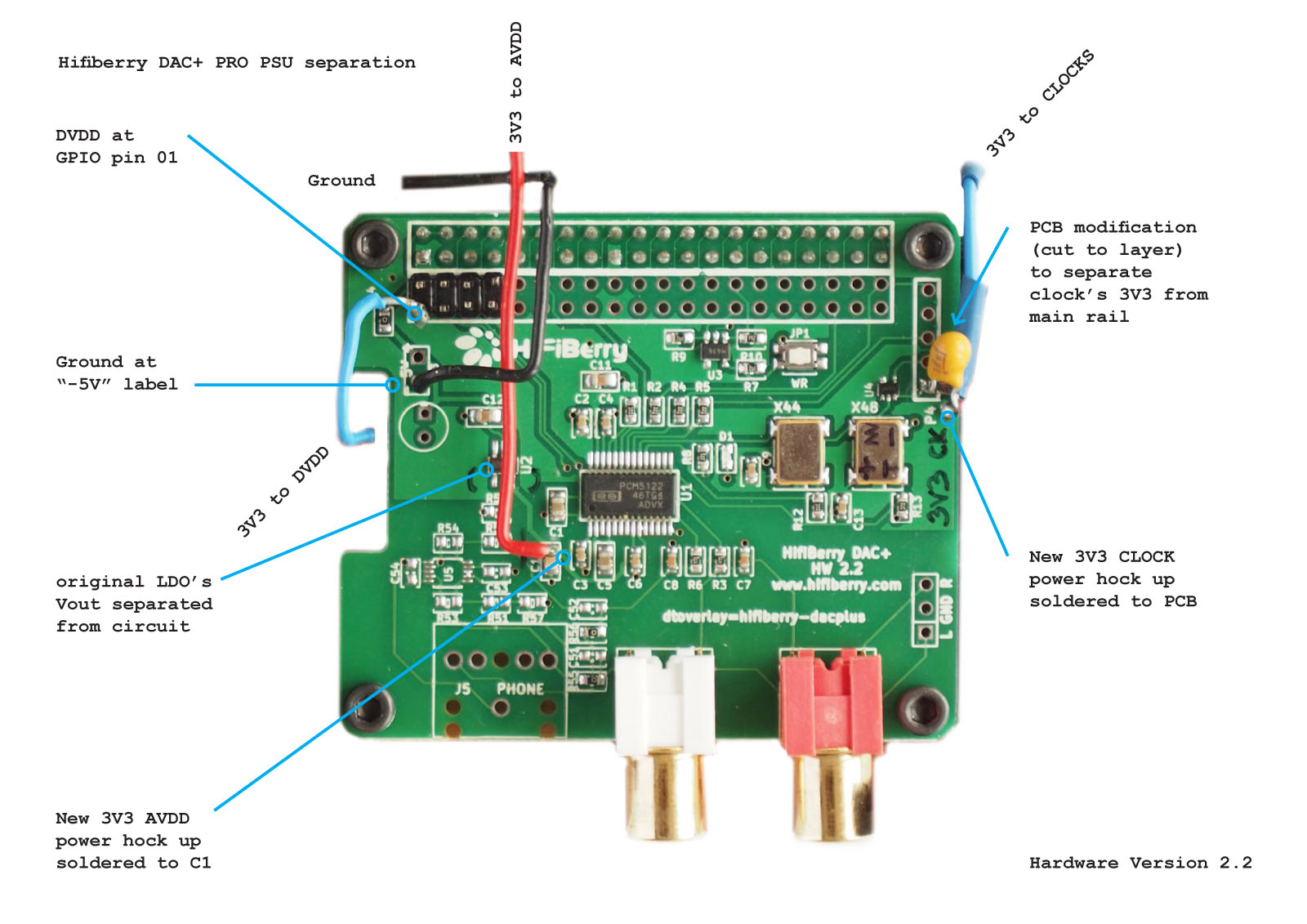

HifiBerry DAC+ Pro

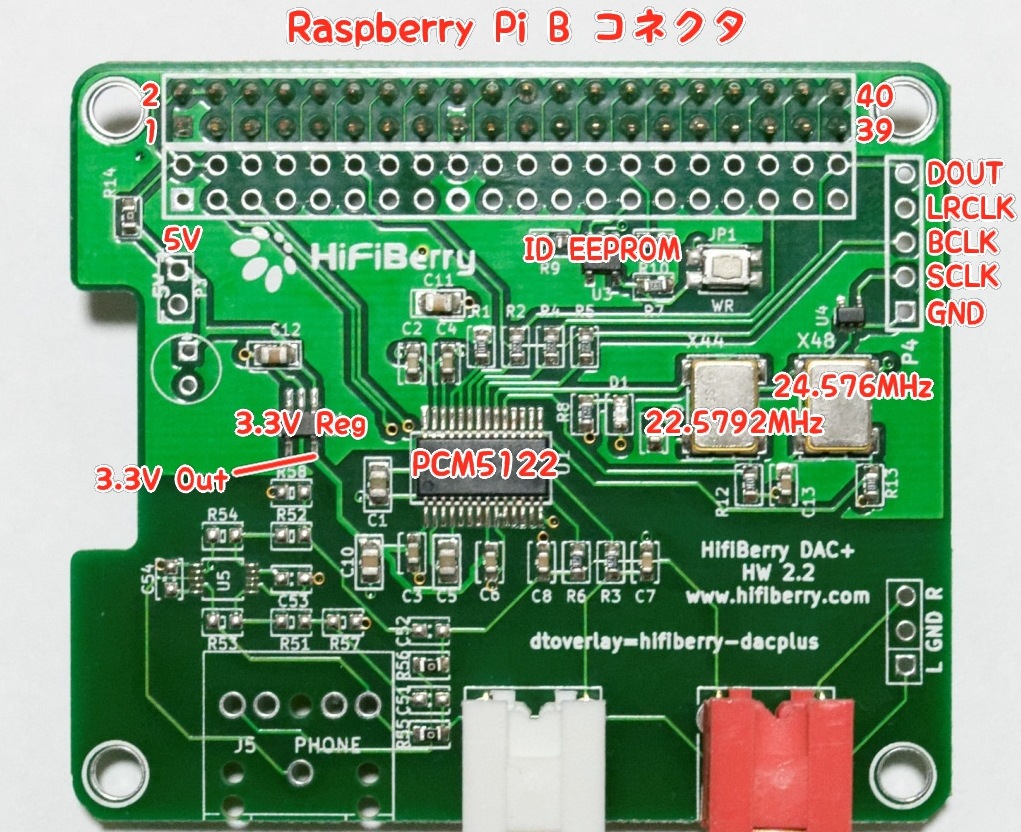

HiFiBerry DAC+ Pro
HiFiBerry DAC+ Pro



//----------------------------

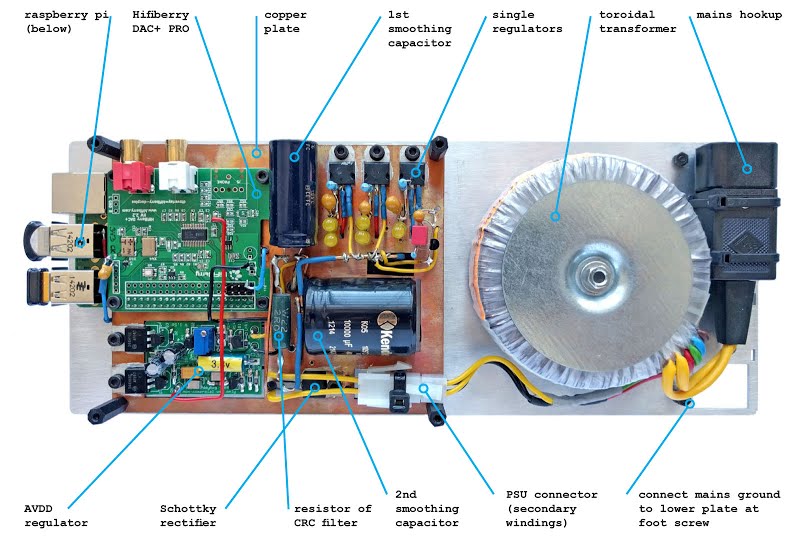

mdXS - X-7 series mark IV - The Copper Plate DAC

sites.google.com/a/architekturkonsulat.at/mdxs/resources/x-7

//





반응형
Posted by codens
