기타 이펙터 연결 순서
guitar multi effect signal chain order

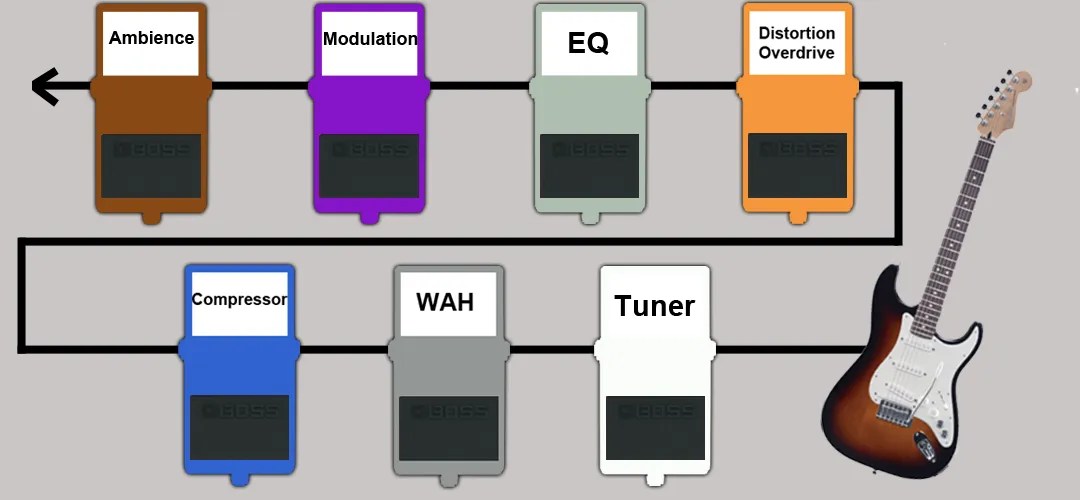

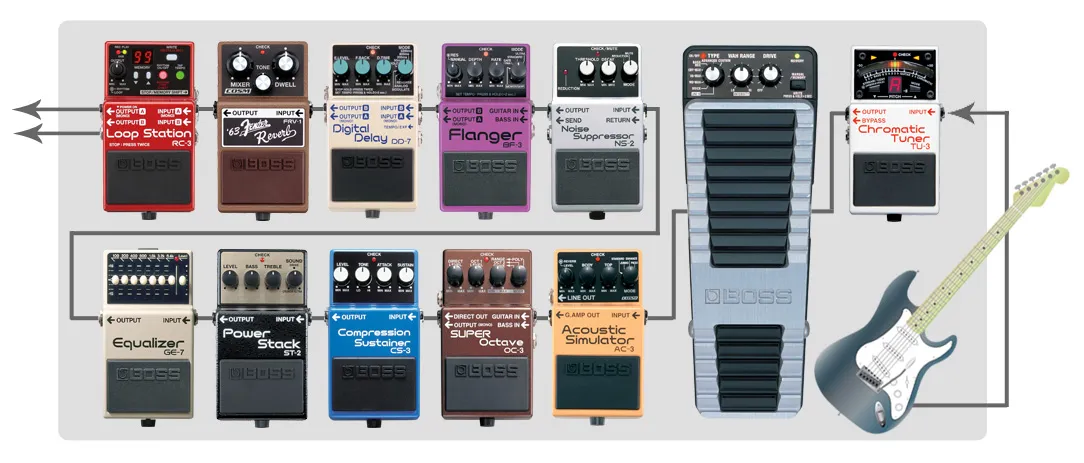

How To Chain Your Guitar Effects Pedals – Part 1
https://www.bossus.com/blog/2013/03/06/how-to-chain-your-guitar-effects-pedals/


How To Chain Your Guitar Effects Pedals – Part 2
https://www.bossus.com/blog/2013/03/19/how-to-chain-your-guitar-effects-pedals-part-2/

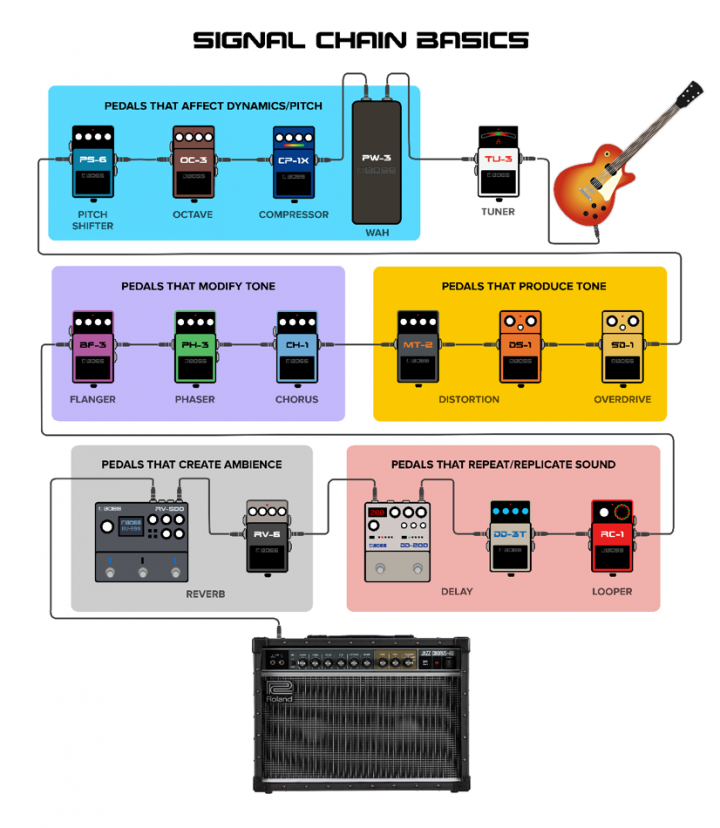

How to Guide: Signal Chain for Your Pedalboard
https://rolandcorp.com.au/blog/order-effects-chain-simple-guide


//-------------------------------------
How to order your guitar pedal chain?
https://jaazz.me/2019/01/08/how-to-order-your-guitar-pedal-chain/

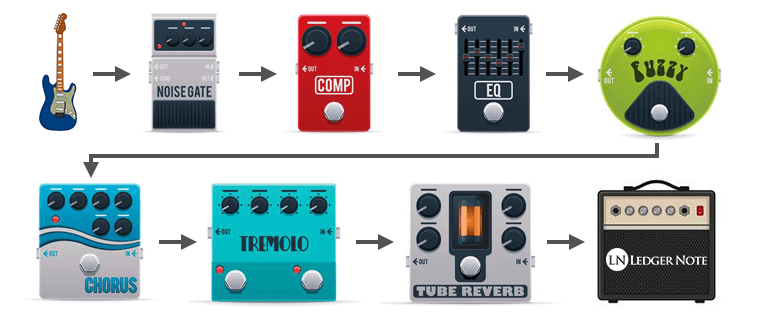

Guitar > Noise Gate > Compressor > Equalizer> Fuzz > Chorus > Tremolo > Reverb > Amplifier

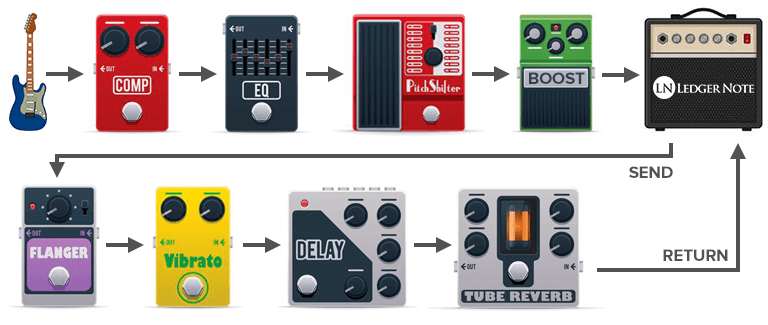

Guitar > Compressor > Equalizer > Pitch Shifter > Boost > Amplifier (Send) > Flanger > Vibrato > Delay > Reverb > Amplifier (Return)



//-------------------------------------
노이즈 게이트 위치 : 보통 드라이브 앞쪽 , 노이즈가 심하거나 하이게인에는 드라이브 뒤쪽
이퀄라이저(EQ) 위치 : Free

//-------------------------------------

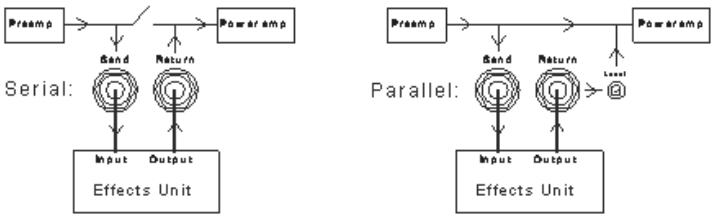

< 샌드 리턴 (Send Return) 연결 순서 >

https://www.koch-amps.com/guitar-koch-amps-blog/effects-loops-explained-by-dolf-koch-series-vs-parallel-effects-loops

- 공간계 이펙트(딜레이, 리버브) 다음에 앰프의 프리앰프가 오면 음이 지저분해짐

기타 -> 드라이브 -> 앰프(프리앰프) ->  [Send] ->  공간계 이팩터 -> [Return] -> 앰프(파워앰프)


- 앰프의 파워앰프만 사용할 경우(FRFR 소리 증폭용)
기타 -> 이팩터 -> [Return] -> 앰프(파워앰프)

//-----------------------------------------------------------------------------

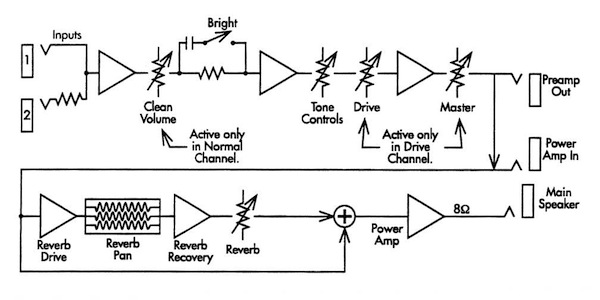

팬더 앰프 회로도(배선도 block diagram , Schematic)리버브 위치
https://stinkfoot.se/archives/2159



//-----------------------------------------------------------------------------

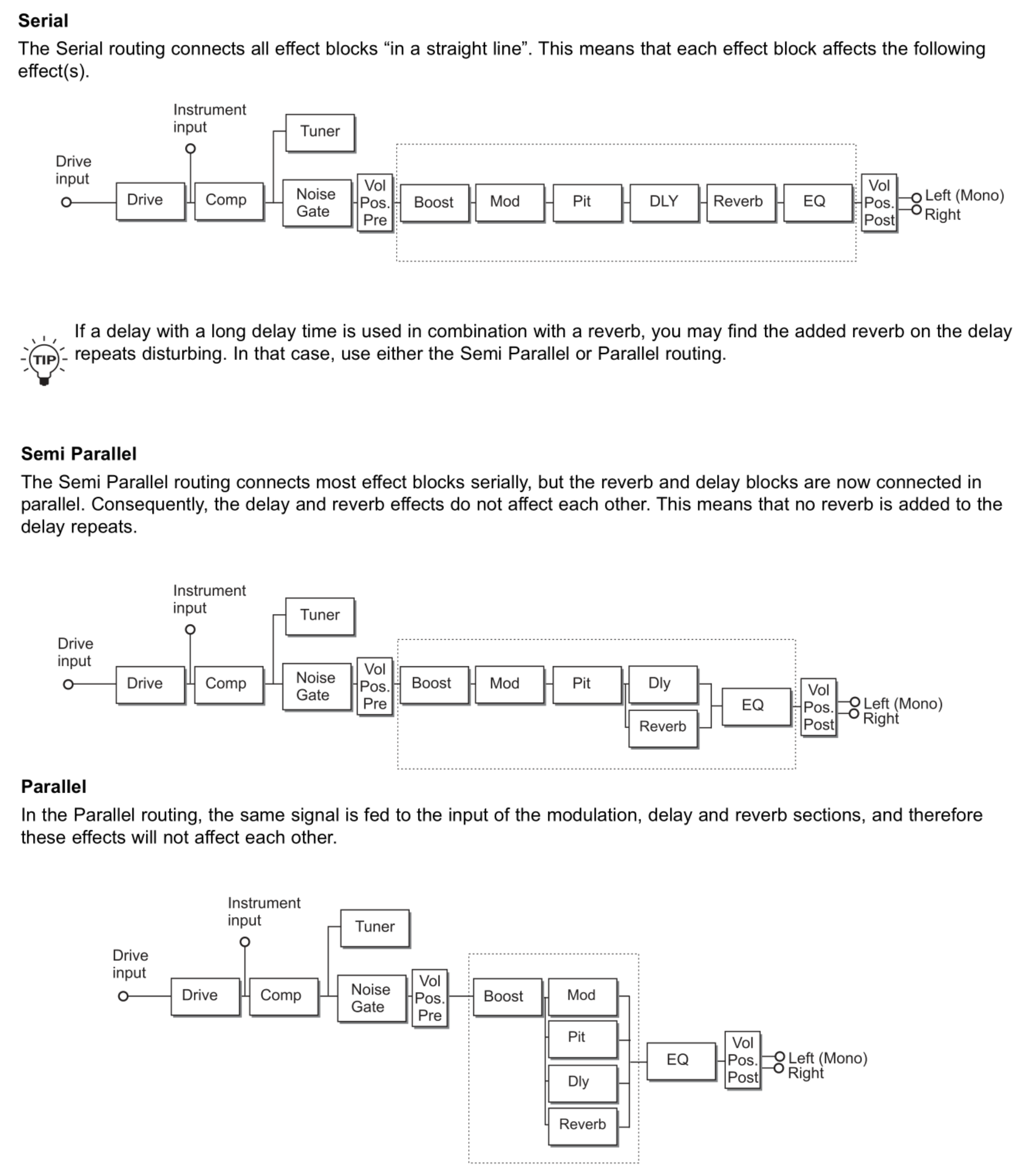

* TC Electronic Nova System User Manual


//-------------------------------------
//
Noise Gate
Volume
Comp

Drive

Amp
Cab



Chorus (공간계)
Delay
Reverb
EQ
