[라즈베리파이] Raspberry Pi DAC - HiFiBerry

//---------------------------------------------------

// 라즈베리파이 DAC

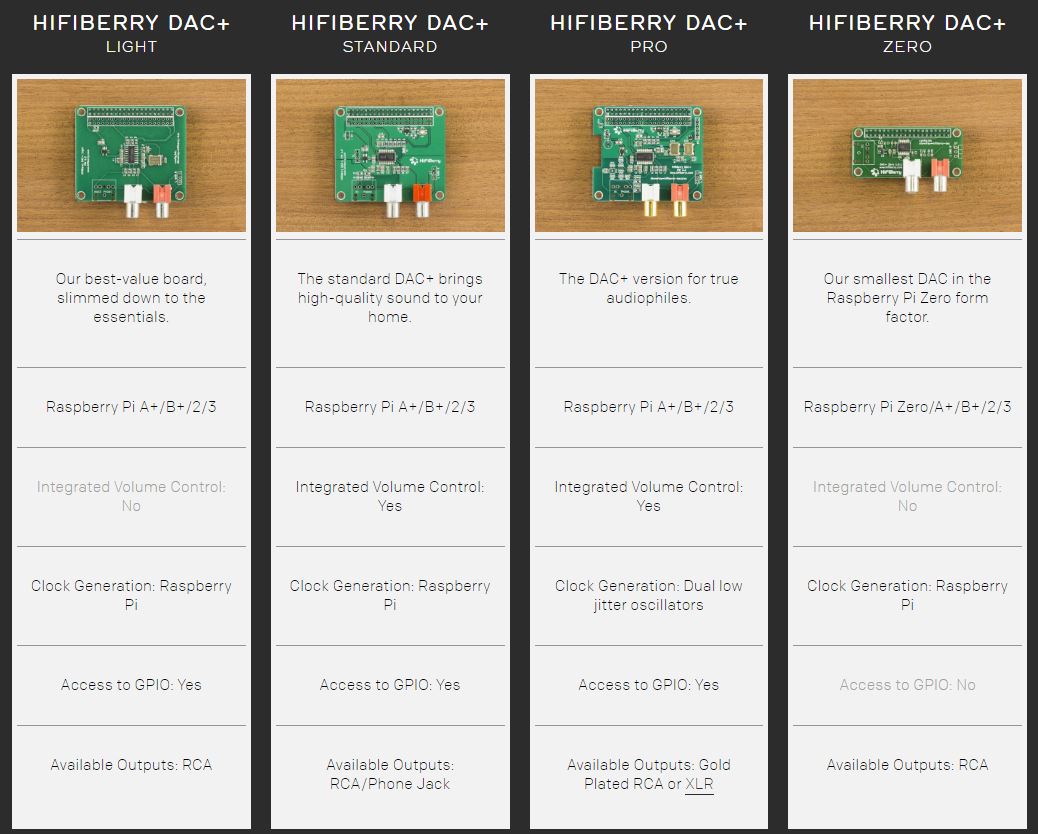

HiFiBerry 제품 비교표

www.devicemart.co.kr/goods/view?no=1279155#goods_description
//

HiFiBerry board 기능 비교 차트
	DAC+ Light	DAC+	DAC+ Pro	Digi+ standard	Digi+ transformer	Amp+	Amp2
Sample rates	44.1-192kHz					44.1-48kHz	최대 192kHz
Analog output	Line out 2Vrms			X		최대 2 x 25W	60W
Digital output	X			SPDIF		X
출력 단자	2 x RCA	2 x RCA 또는 3.5mm 폰 잭	2 x gold-plated RCA	TOSLink and RCA	TOSLink and 독립(절연) RCA	screw terminals
Chipset	ESS	Burr-Brown	Burr-Brown + Xpresso	Cirrus	Cirrus	Texas Instruments
통합 볼륨 컨트롤	X	O	O	X	X	O	O
라즈베리파이 HAT	X	O	O	O	O	X	X
GPIO 연결(연결 가이드 링크)	가능(40개의 핀헤더 납땜 가능)					가능
전원 공급	라즈베리파이에서 직접 전원 공급 가능		라즈베리파이로부터 전원 공급, 또는 별도의 전원 공급 가능	라즈베리파이에서 직접 전원 공급 가능		외부 12-18V, 또는 라즈베리파이	외부 12-24V, 또는 라즈베리파이
부가 기능			외부 I2S DACs를 위한 클럭 제네레이터로 사용 가능



//

//-------------------

HiFiBerry DAC+ Pro DATASHEET

https://www.hifiberry.com/docs/data-sheets/datasheet-dac-pro/



DAC chipset Model : PCM5122

    - Dedicated 192kHz/24bit high-quality Burr-Brown DAC





//-------------------

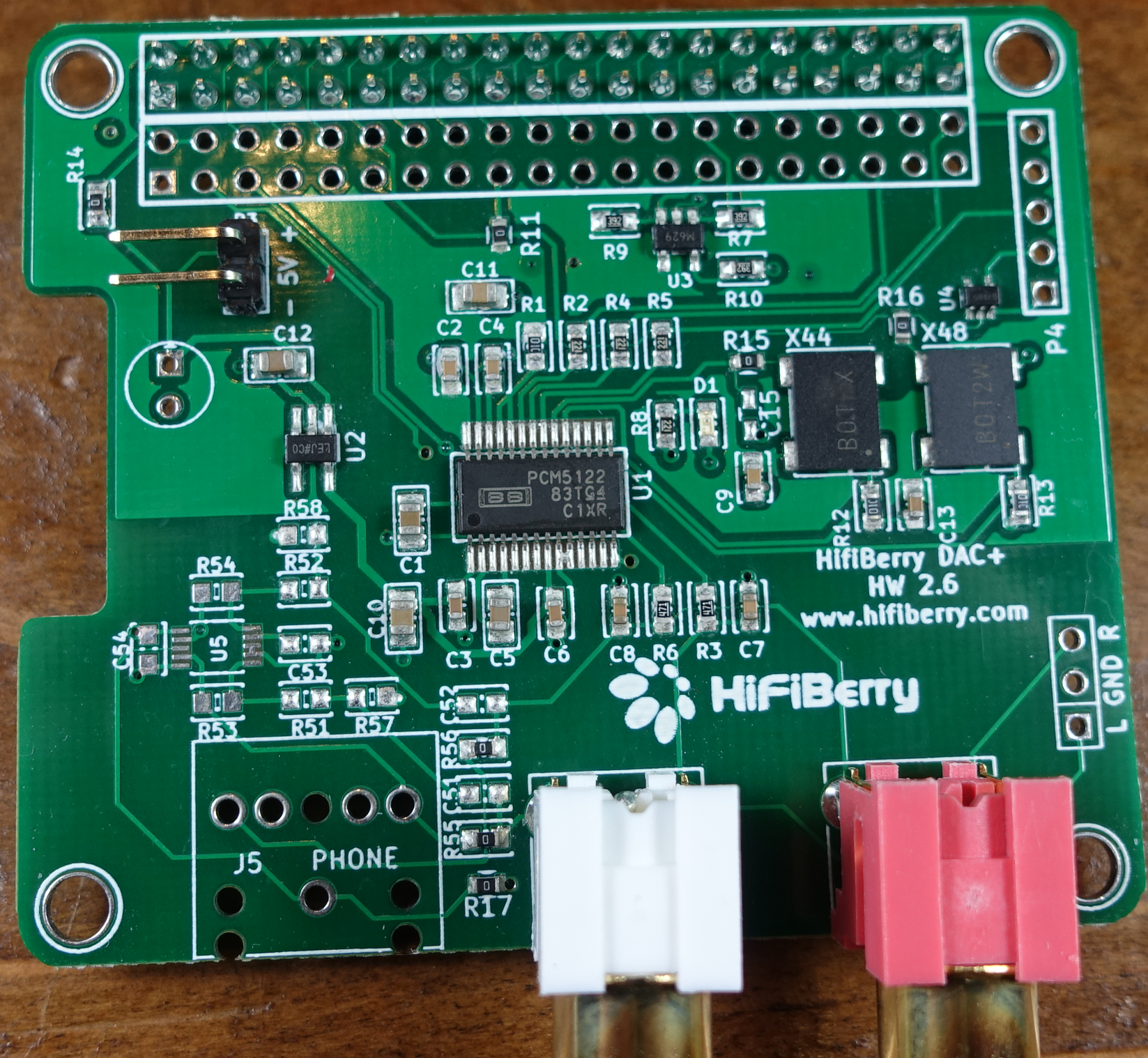

HiFiBerry DAC+ standard

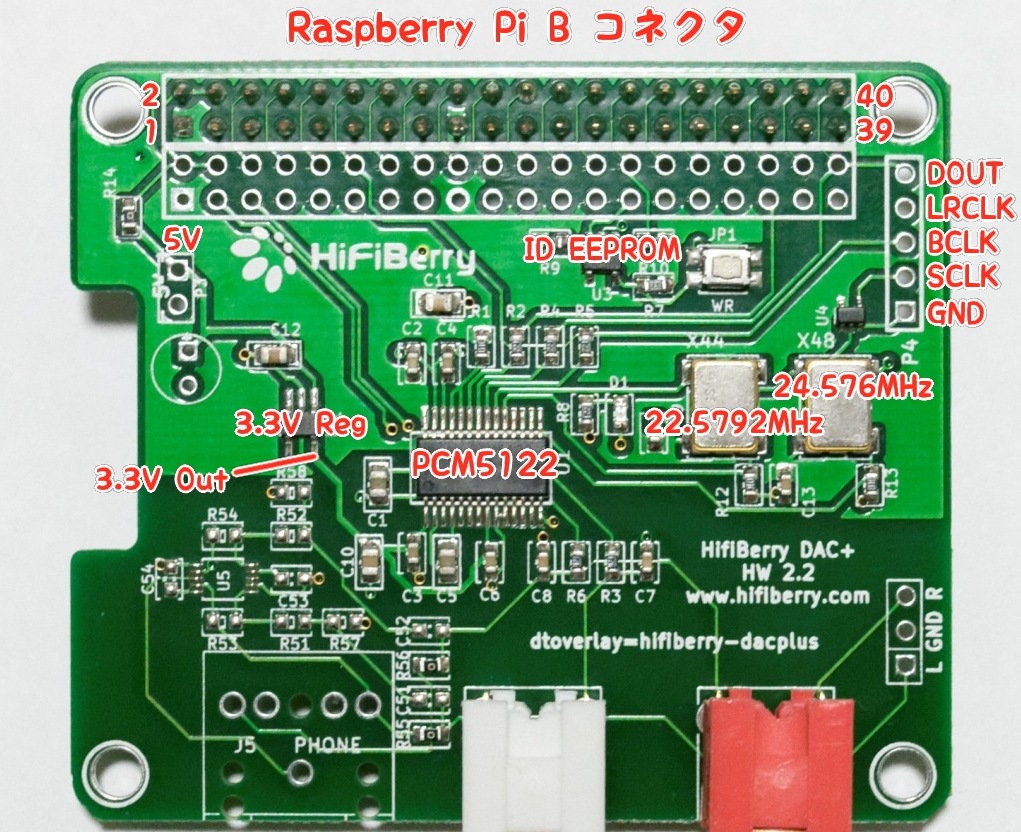

HifiBerry DAC+ Pro

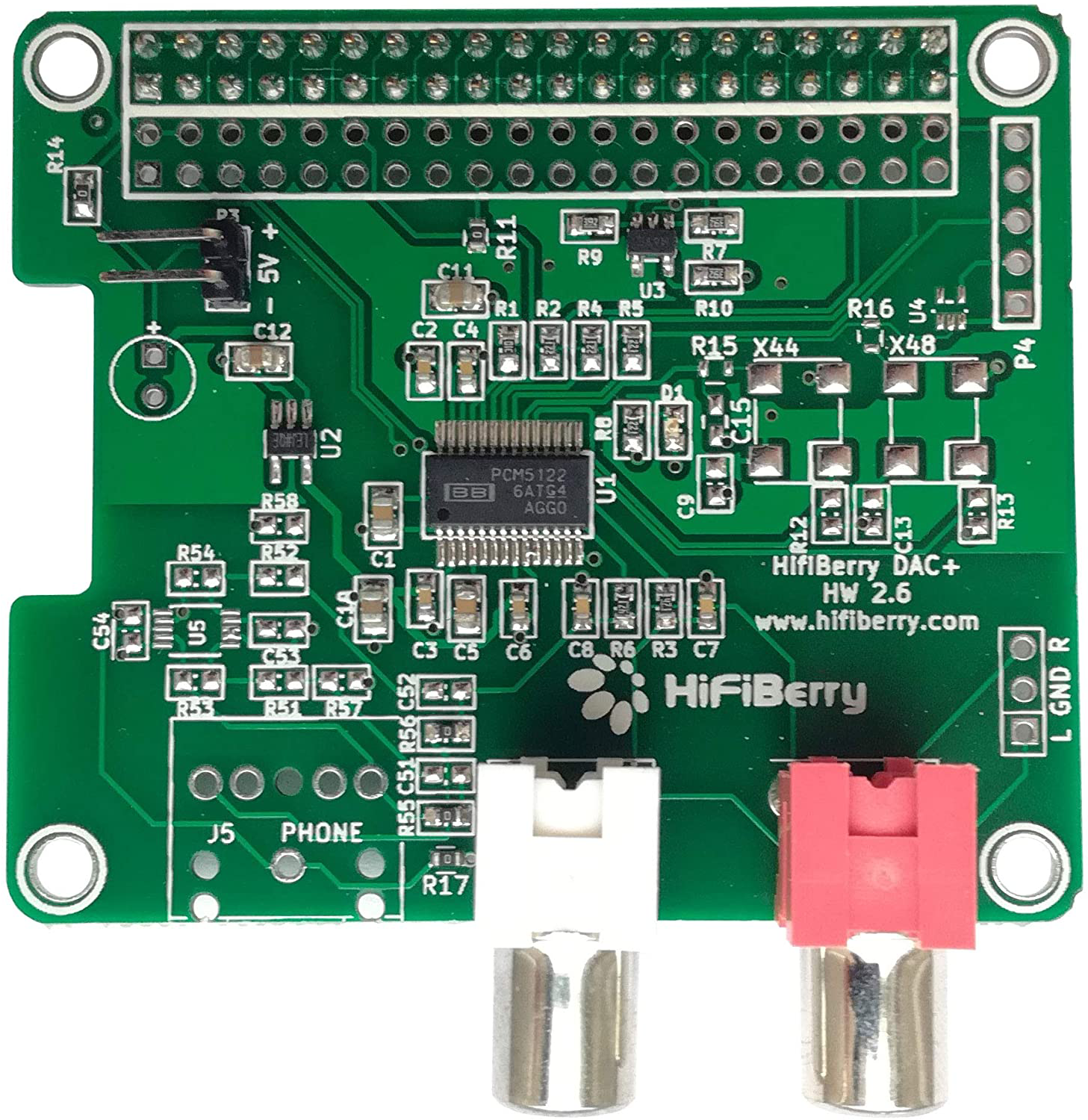

HiFiBerry DAC+ Pro

HiFiBerry DAC+ Pro



//----------------------------

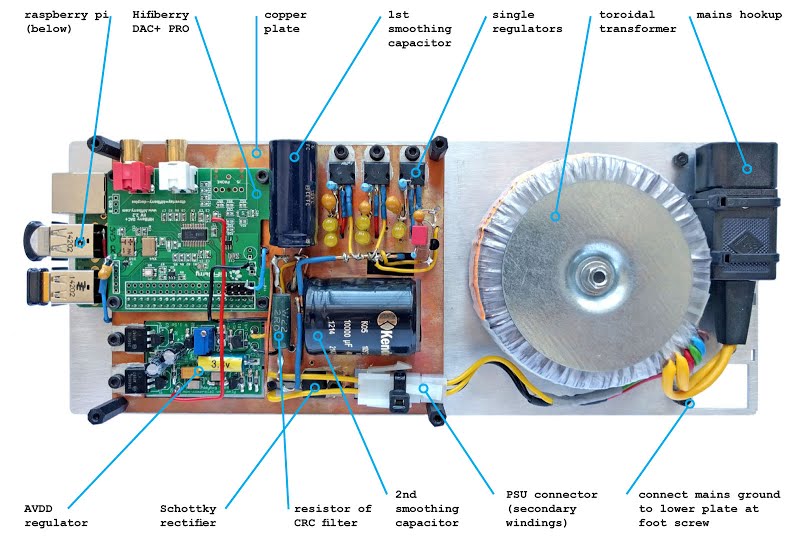

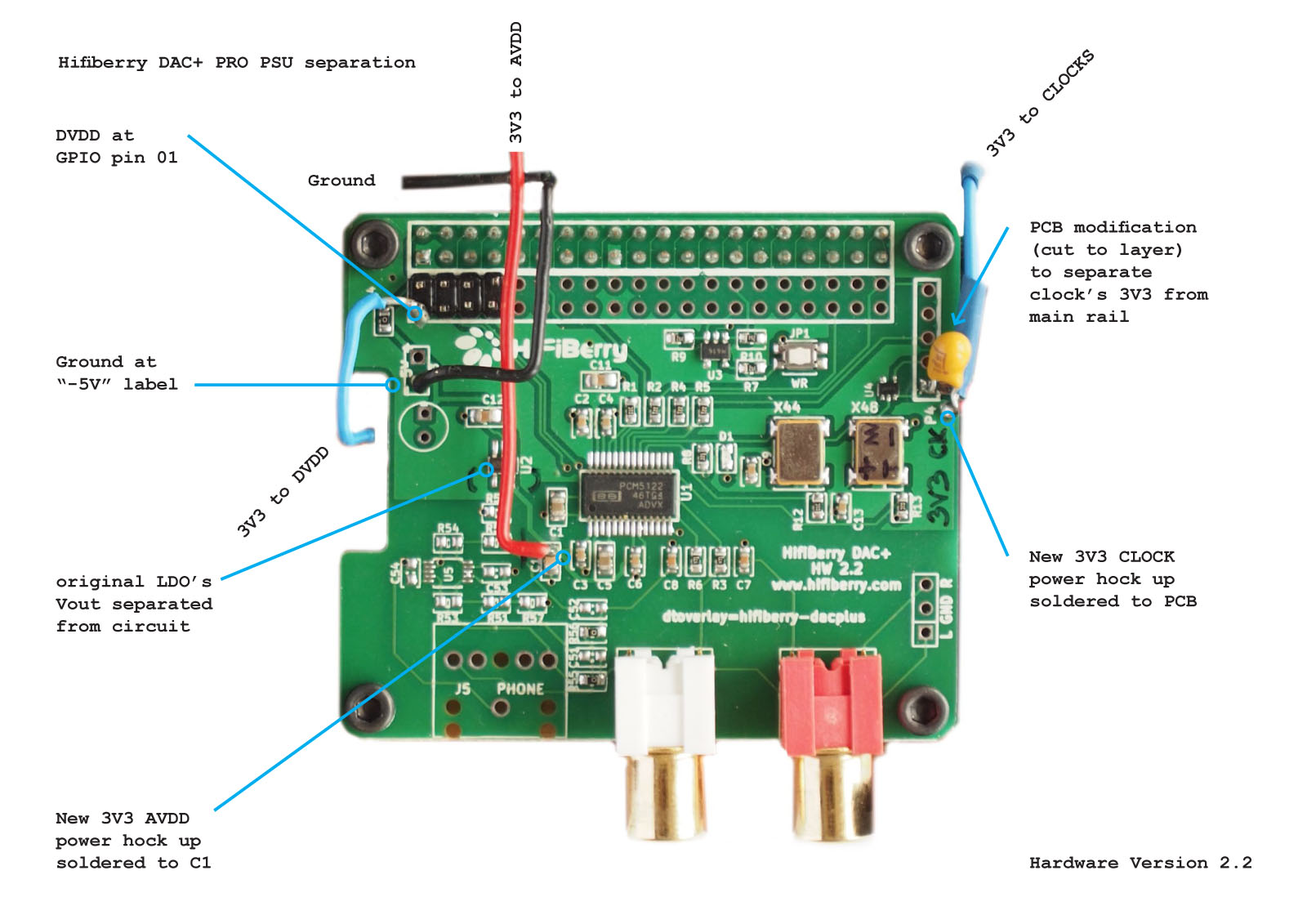

mdXS - X-7 series mark IV - The Copper Plate DAC

sites.google.com/a/architekturkonsulat.at/mdxs/resources/x-7

//
