[라즈베리파이] Raspberry Pi 기본 정보, DAC
// 라즈베리파이 스펙
en.wikipedia.org/wiki/Raspberry_Pi
|
모델 |
1 B |
2 B |
3 B |
3 B+ |
4 B |
|
출시 |
2012 |
2015 |
2016 |
2018 |
2019 |
|
ISA |
ARMv6Z (32-bit) |
ARMv7-A (32-bit) |
ARMv8-A (64/32-bit) |
|
|
|
SoC (Broadcom) |
BCM2835 |
BCM2836 |
BCM2837 |
BCM2837B0 |
BCM2711 |
|
CPU |
1× ARM1176JZF-S |
4× Cortex-A7 |
4× Cortex-A53 |
4× Cortex-A53 |
4× Cortex-A72 |
|
GPU |
Broadcom VideoCore IV @ 250 MHz |
VI @ 500 MHz |
|||
|
RAM |
512 MiB |
1 GiB |
1, 2 or 4 GiB |
||
|
USB |
2.0 |
3.0 |
|||
|
Power |
5 V via MicroUSB or GPIO header |
USB-C |
|||
|
Size |
85.60 mm × 56.5 mm |
|
85.60 mm × 56.5 mm × 17 mm |
||
|
Weight |
45 g |
46 g |
|||
|
Ethernet |
10/100 Mbit/s |
|
|
10/100/1000 Mbit/s |
|
|
WiFi |
|
|
2.4 GHz |
2.4/5 GHz |
|
|
Bluetooth |
|
|
4.1 BLE |
4.2 LS BLE |
5.0 |
|
Video input |
15-pin MIPI camera interface (CSI) |
||||
|
Video outputs |
HDMI, composite , DSI |
HDMIx2 |
|||
|
Audio Input |
|
|
|
|
|
|
Audio Output |
3.5 mm phone jack; |
||||
|
Storage |
SD |
MicroSDHC |
|||
|
주변장치 |
8× GPIO |
17× GPIO |
|||
//
//---------------------------------------------------

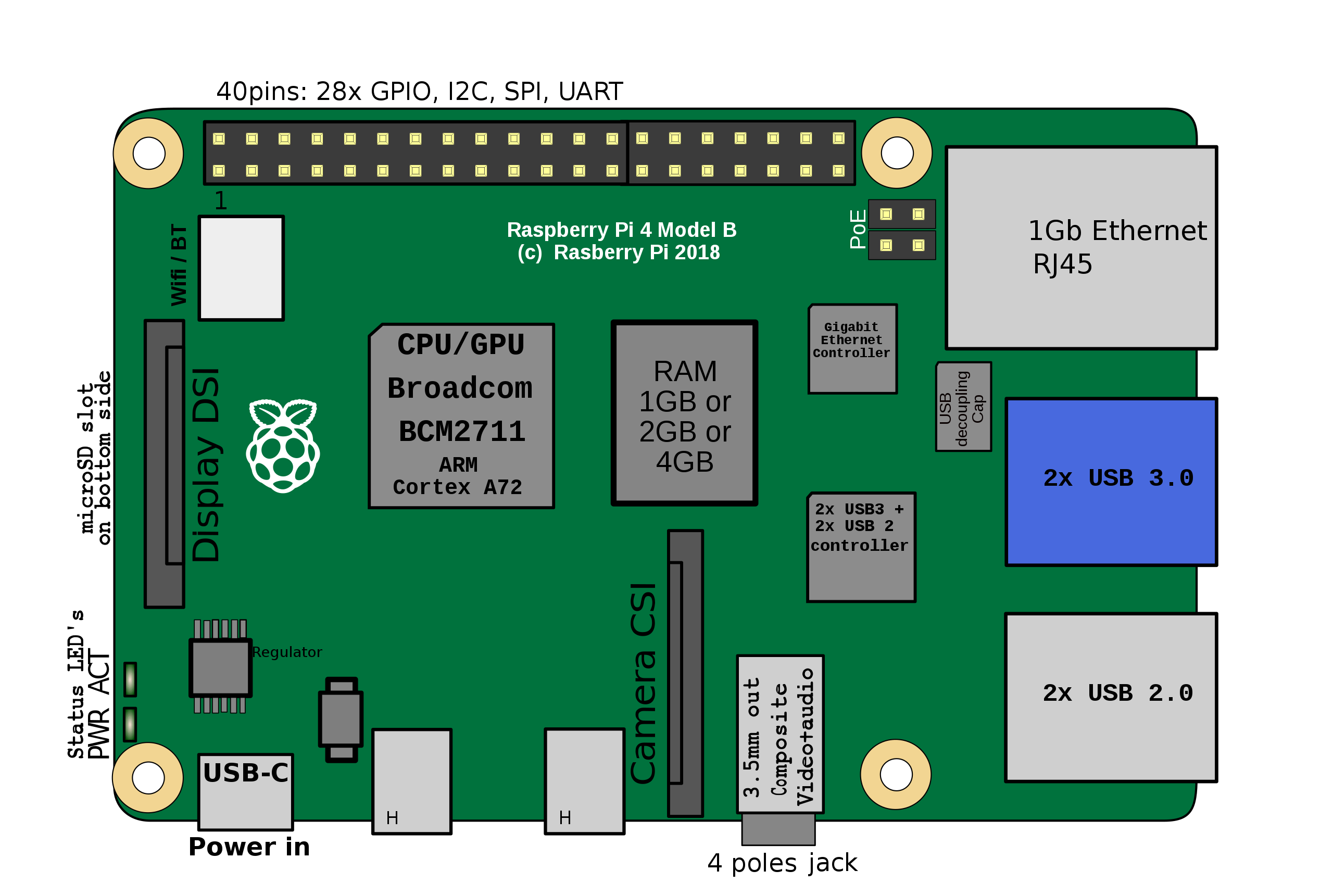

고화질 사진 - 클릭하시면 확대됩니다.
//
