기타 멀티 이펙터 리스트 비교 정리 (2022-03)

기타 멀티 이펙트 리스트
    Multi Effects, 무게 가격 정리


//============
< Line6 >

Product List (Manual)
http://line6.com/support/manuals





//==================================

Line6 POD Go (2020) 2.35kg - 68만

- 크기 : 359 x 230 x 88 (cm)

- 10개 동시 이펙트 (6개 고정, 4개 가변)

    - 단점 : 시그널 체인이 1라인(멀티 라인 앰프 연결 안됨)

- 앰프모델: 83, 이펙트: 209





POD Go Cheat Sheet - English .pdf

1.40MB

line6 effect compare -다운로드.pdf

다운로드

//------------------------------------

// helix floor,, POD Go, HX Effects 이펙터 스펙 비교

//

	Amp + Effect Processors		Effect-Only Processors
	Helix Floor	POD Go	HX Effects
Amp Models	83	83	---
Effect Models	213	209	213
Presets	1,024 (8 setlists x 32 banks x 4 presets)	256 (2 setlists x 32 banks x 4 presets)	128 (32 banks x 4 presets)
Simultanious Processing Blocks	Up to 32 (DSP permitting)	Up to 10 (semi-fixed, DSP permitting)	Up to 9 (DSP permitting)
Signal Flow Options	Up to 4 stereo, serial or parallel	Serial	Up to 2 stereo, serial or parallel
Snapshots	8 per preset	4 per preset	4 per preset
Impulse Responses (IRs)	128x 1024 or 2048-point	128x 1024-point	128x 1024 or 2048-point
Global EQ Bands	3 fully parametric + variable low & high cut	3 fully parametric + variable low & high cut	---
Main Display	6.2”/16.5cm color LCD	4.3"/11cm color LCD	---
Footswitches	12 capacitive touch w/ RGB rings + EXP toe switch	8 with RGB rings + EXP toe switch + 2x external	8 capacitive touch with RGB rings
Footswitch Modes	Stomp, Preset, Snapshot, Looper, Pedal Edit	Stomp, Preset, Snapshot, Looper	Stomp, Preset, Snapshot, Looper, Pedal Edit
Footswitch Types	Latching, Momentary	Latching	Latching, Momentary
Looper Types	6 Switch, 1 Switch	6 Switch, 1 Switch	6 Switch, 1 Switch
Looper Memory (Full Speed)	60 sec mono/30 sec stereo	40 sec mono/20 sec stereo	60 sec mono/30 sec stereo
Looper Memory (1/2 Speed)	120 sec mono/60 sec stereo	80 sec mono/40 sec stereo	120 sec mono/60 sec stereo
1/4” Inputs	Guitar, Aux, Return 1-4	Guitar, Stereo Return	Stereo L/R, Return L/R
1/4” Outputs	Main L/R, Send 1-4	Main L/R, Amp Out, Stereo Send	Main L/R, Send 1-2
XLR Inputs	Mic pre w/ phantom power	---	--- ---
XLR Outputs	Main L/R	---
Effect Loop(s)	4x Send, 4x Return, stereo-linkable	1x mono/stereo Send, 1x mono/stereo Return	2x Send, 2x Return, stereo-linkable
Digital In	Variax VDI, S/PDIF	--- ---	--- --- ---
Digital Out	S/PDIF, AES/EBU/L6 LINK
Headphones	1/4" stereo	1/4" stereo
MIDI	In, Out/Thru + USB	USB	In, Out/Thru + USB
USB Audio Interface	8-In, 8-Out With Re-Amping	4-in, 4-out w/ re-amping	---
Master Remote Control	Command Center	--- ---	Command Center
Variable Impedance Circuitry	Guitar In		---
Hands-Free Pedal Edit Mode	Yes	---	Yes
Chassis	Extruded aluminum w/ cast aluminum side panels	Bent steel and polycarbonate	Bent steel w/ ABS side panels
Treadle	Cast aluminum	Cast aluminum	---
Scribble Strip LCDs	13 x 2”/5cm	---	6 x 2”/5cm
1/4" Exp Pedal Inputs	EXP 2, EXP 3	EXP 2 (shared w/ Footswitch 7/8)	EXP 1, EXP 2 (shared w/ Amp Control 1/2)
External Amp Control Outputs	2 (1=Tip, 2=Ring)	---	4 (shared w/ EXP 1, EXP 2)
Power	IEC	DC-3g	DC-3g
Product Height (in/cm)	3.61/92	3.5/88	2.81/71
Product Width (in/cm)	22.05/560	9.1/230	10.8/274
Product Depth (in/cm)	11.87/301	14.1/359	7.84/199
Product Weight (lb/kg)	14.6/6.6	5.5/2.5	4.9/2.22

 //

//





//==================================

* line 6 HX EFFECTS (2018) , 2.2kg - $600, (82만원)

- 9개 동시 이펙트

 - 단점 : 메인 볼륨 조절 노브가 없음

- 앰프 모델을 뺀 Helix에 가까움

-  DSP는 1개(450MHz SHARC ADSP-21469) , (Helix는 2개)

크기 : 274 x 200 x 76 (mm)



HX Effects Cheat Sheet - English -compressed.pdf

1.45MB







//================================

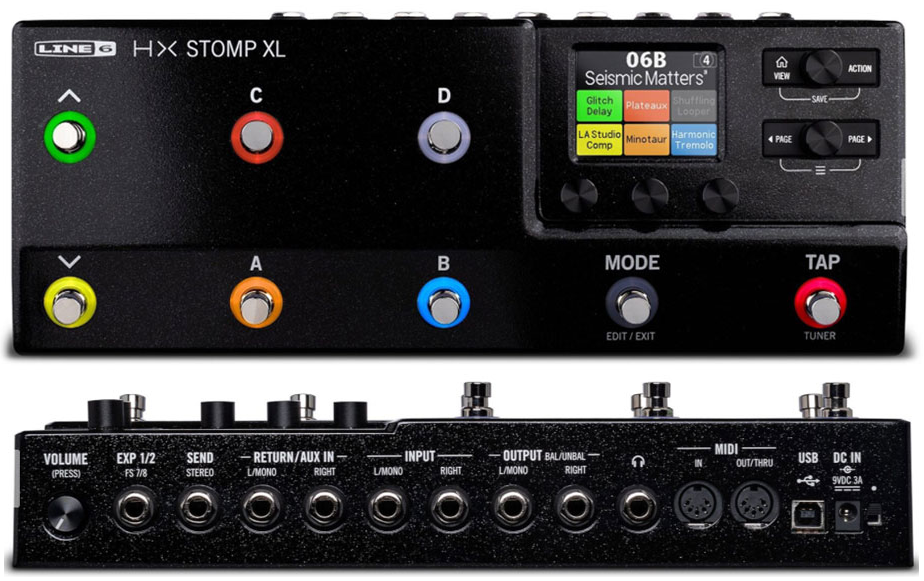

* Line 6  HX Stomp XL (2021) - 100만 ($750)
동시 이펙트 : 8개

무게 : 1.5kg

크기 : 6.8x 31.5 x 11.9 cm





//-------------------------------------

* HX Stomp (2018) - $650 - 90만원

동시 이펙트 : 8개

무게 : 790g

크기 : 177 x 127 x 63 (mm) ,









//===============================

*  Helix  (floor)(2015) - $1500 - 6.6kg - 200만
http://line6.com/support/manuals/helix
      - 크기 : 560 x 301 x 92 (cm)

- 동시 : 앰프 4개, 이펙터 32개







* Line 6 Helix LT (2018) , 5.5kg - $1000, (160만)

음향 스펙은 Helix (floor)과 동일, I/O만 차이









Comparison_HELIX_LT.pdf

다운로드





//---------------------------

신호 처리 프로세서( DSP(Digital signal processor), Real-time signal processing)

Analog Devices

SHARC ADSP-21460

https://www.analog.com/en/products/processors-microcontrollers/processors-dsp/sharc-audio-processors-socs.html



SHARC Processor Benchmarks(성능)

https://www.analog.com/en/design-center/landing-pages/001/sharc-benchmarks.html

ADSP-2146x : 1800-2700 MFLOPS

ADSP-2158x (2 core) : 3600-5400 MFLOPS





//----------------------------------

Cirrus-Logic CS5368 (A/D 컨버터)

https://www.cirrus.com/products/cs5364-66-68/

- 24bit, 114dB, 192kHz



//----------------------------------

Cirrus-Logic CS4385 (D/A 컨버터)

https://www.cirrus.com/products/cs4365-85-85a/

- 24bit, 114dB, 4 - 216kHz









//----------------------------------------------------------------

* Line6 POD HD500X (2013), 4.8kg - 76만, $500
    - 동시(simultaneous) 8개
http://line6.com/podhd

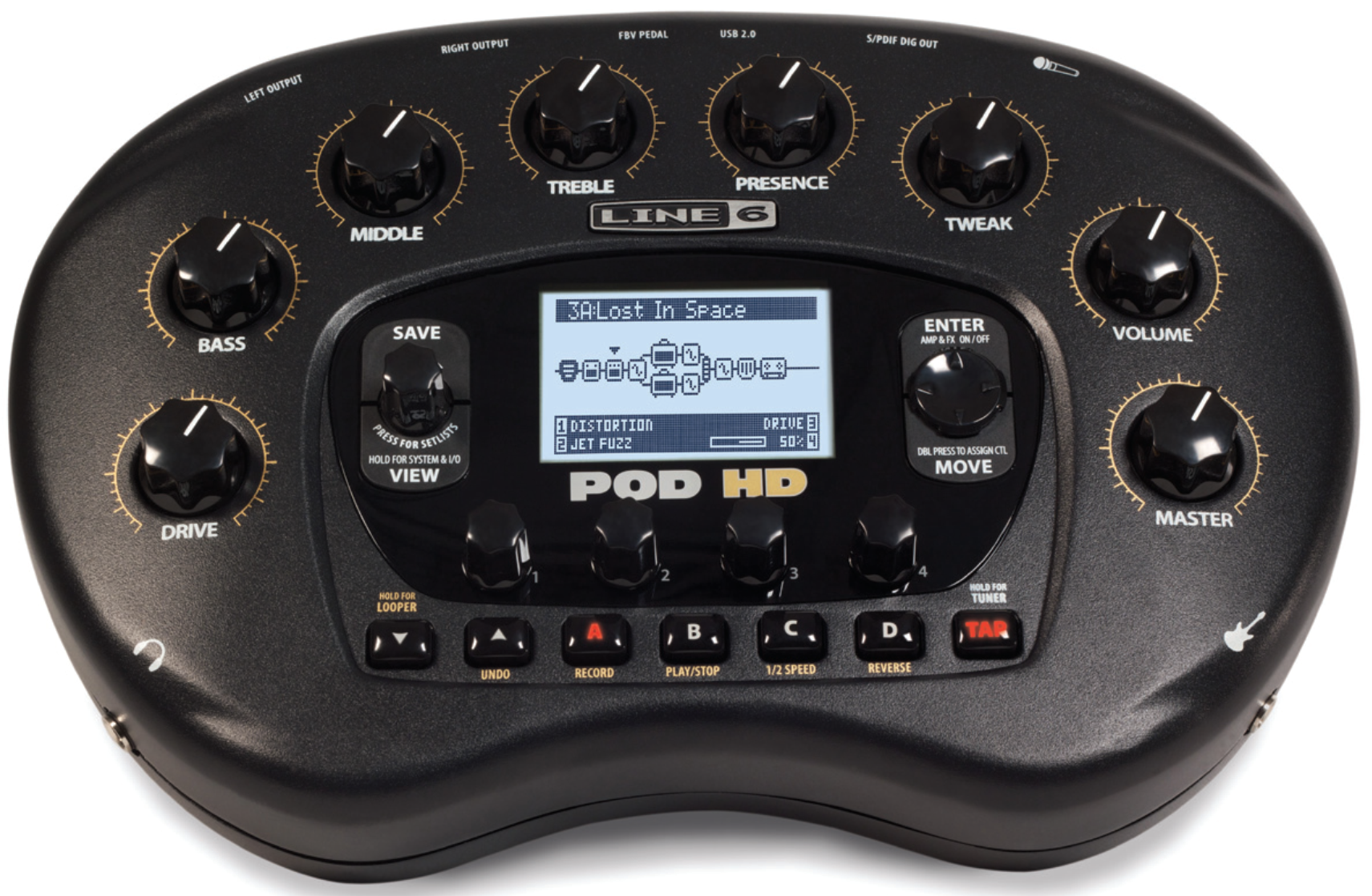

* Line 6 POD HD Desktop (2011), 1.2kg - 60만, $650

- 동시 8개



- FBV Express MKII  , 1.4kg - 15만

- FBV2 - 4만





* Line6 M9 Stompbox Modeler (2010), 1.9kg - 50만

    - 동시 3개



* POD X3 (2008)



* Line 6 Firehawk FX (2015) - 6.4kg
* Line 6 AMPLIFi TT Desktop (2014) - 1.8kg



//=========================================================
< BOSS  >

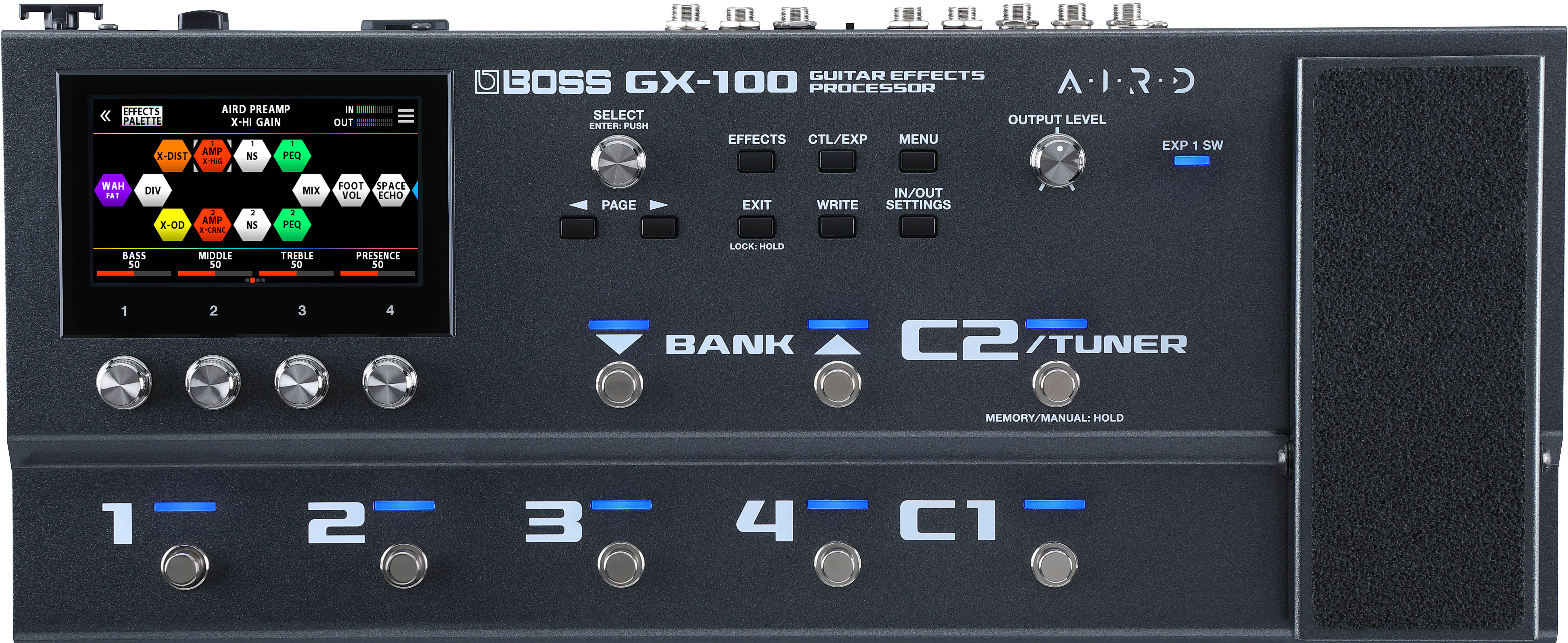

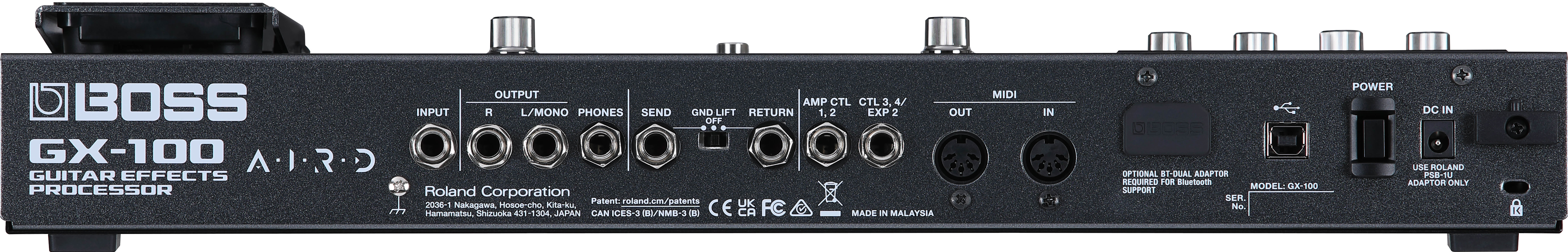

BOSS GX-100 (2022-03) - 3.5kg - $600 (82만원)
    - 15개 동시 이펙트
    - 크기 : 460 x 193 x 94 mm
https://www.boss.info/global/products/gx-100/





Boss GT-1000CORE (2021) - 920g - $700, (100만원)

- 크기 : 173x135x65

- 24 개 동시 이펙트, (2개 앰프 동시)

https://www.boss.info/us/products/gt-1000core/







//-----------------------------------------------------------

* BOSS GT-1000 (2018) , 3.6kg  - ($1,000)  140만

https://www.boss.info/us/products/gt-1000/specifications/

http://www.cosmosmusic.com/goods/view?no=4451&viewtype=n



동시 사용가능한 이펙터 수 = 27개

https://www.vguitarforums.com/smf/index.php?topic=23660.0

7【GT-1000】 Q. What is the number of effects that can be used with one patch?

ANSWER

The blocks that can be used with the GT-1000 patch and its number are as follows.



COMPRESSOR    × 1

DISTORTION    × 2

AIRD PREAMP   × 2

NOISE SUPPRESSOR   × 2

EQUALIZER   × 4

DELAY   × 4

MASTER DELAY   × 1

CHORUS   × 1

FX   × 3

REVERB   × 1

PEDAL FX   × 1

FOOT VOLUME   × 1

SEND / RETURN   × 2

LOOPER   × 1



Regarding the number of simultaneous use of effects, the number of the above blocks is the maximum.

 For categories with multiple blocks, such as DISTORTION and FX, you can select the effect type for each block.

 For example, for DISTORTION 1 and 2, you can select the effect type and assign the same effect type.

 For details of the effect types and parameters that can be set for each block, refer to Parameter Guide P.5 - 25.

http://faq-jp.roland.com/faq/show/87836?category_id=9742







//=====================================================

* BOSS MS-3 (2017) , 1.1kg  - 70만

동시 6계열의 내장 이펙트와 3개의 이펙트 루프

- 스톰프 통합

https://www.boss.info/us/products/ms-3/specifications/

http://www.cosmosmusic.com/goods/view?no=4433&viewtype=n











    * GT-001 (2014),  500g - 47만, $300

    풋스위치 FS-6 : 7만
             FS-7 : 10만
    익스프레션 페달 FV-500H
            EV-5 : 9만



    * ME-80  (2014), 3.6kg - 45만

    * GT-100 (2012), 4.8kg - 70만

    * ME-25  (2010), 1.9kg - 32만

    * ME-70  (2009), 3.5kg - 44만

//===========
* ZOOM



//---------------------------

Zoom G11  - 2.8kg - 100만

https://zoomcorp.com/en/us/multi-effects/guitar-effects/g11/g11-support/

- 9개 동시 이펙트(+앰프)







//--------------------------

Zoom G3n  - 1.28kg - 23만

Zoom G3Xn - 1.68kg - 40만

- 7개 동시 이펙팅, 총 80개 이펙트





* Zoom G5n (2015)

- 9개 동시

- 3.4 kg





    MS-50G (2012) 350g - 12만
        - 동시 6개

    G3 (2011), 1.0kg - 23만, $200
        - 동시 6개
    익스프레션 페달 - 5만

    G2 (2010), 1.3kg - 13만
        - 동시 8개
    G5 (2007), 3.1kg - 36만
    G7.1ut (2001), 4.0kg - 40만


//=====================================

HEADRUSH

https://www.headrushfx.com/

https://www.headrushfx.com/compare-boards

https://www.headrushfx.com/downloads



* HEADRUSH GigBoard (2018) - 90만

- 11 개 동시

- 329 x 225 x 67 (mm)

- 3.24 kg

- DSP : 4 core(quad-core)









* HEADRUSH PedalBoard (2017) - 130만

- 11 개 동시

- 610 x 305 x 89 (mm)

- 7.50 kg







//==================================

Kemper

https://www.kemper-amps.com/profiler/overview#a-product-lineup



* Kemper Profiler Stage - 200만원 ($1,700 )

크기 : 47cm W x 26cm D x 8.5cm H

무게 : 4.6kg





//-----------------------------------------------------------------------------

//=========

Fractal Audio Systems

https://www.fractalaudio.com/family





//-------------------------------------

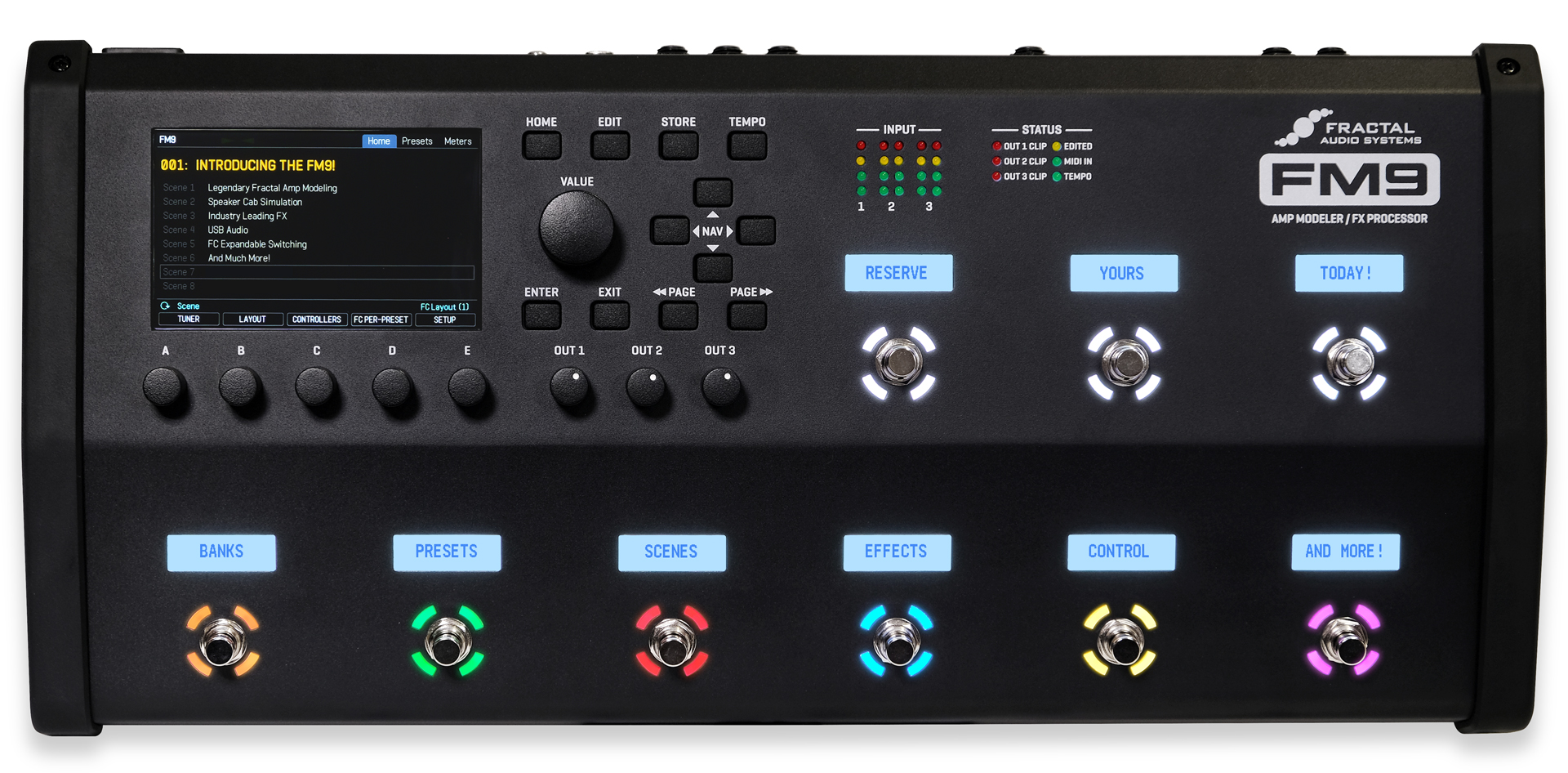

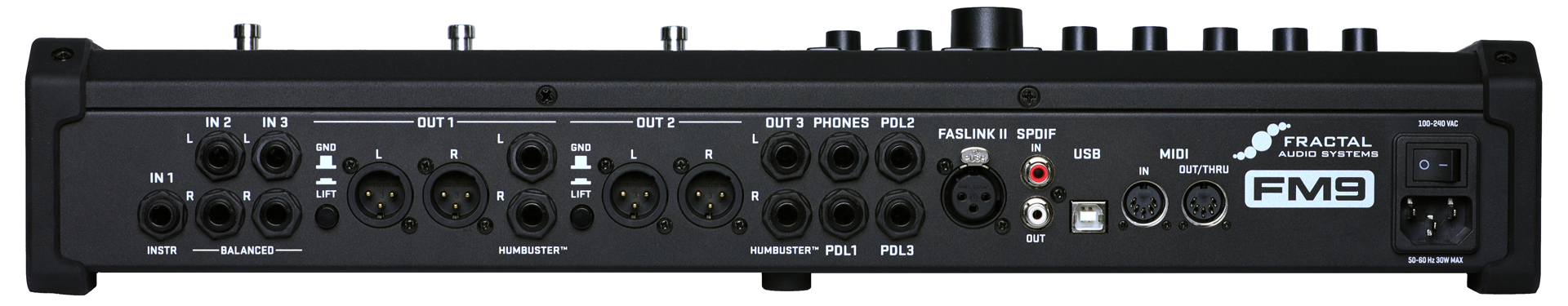

* fractal audio FM9 (2011) - $1600
무게 : 5.44 kg
DSP 성능이 Axe-Fx III의 50%





//-----------------------------------------------------------------------------

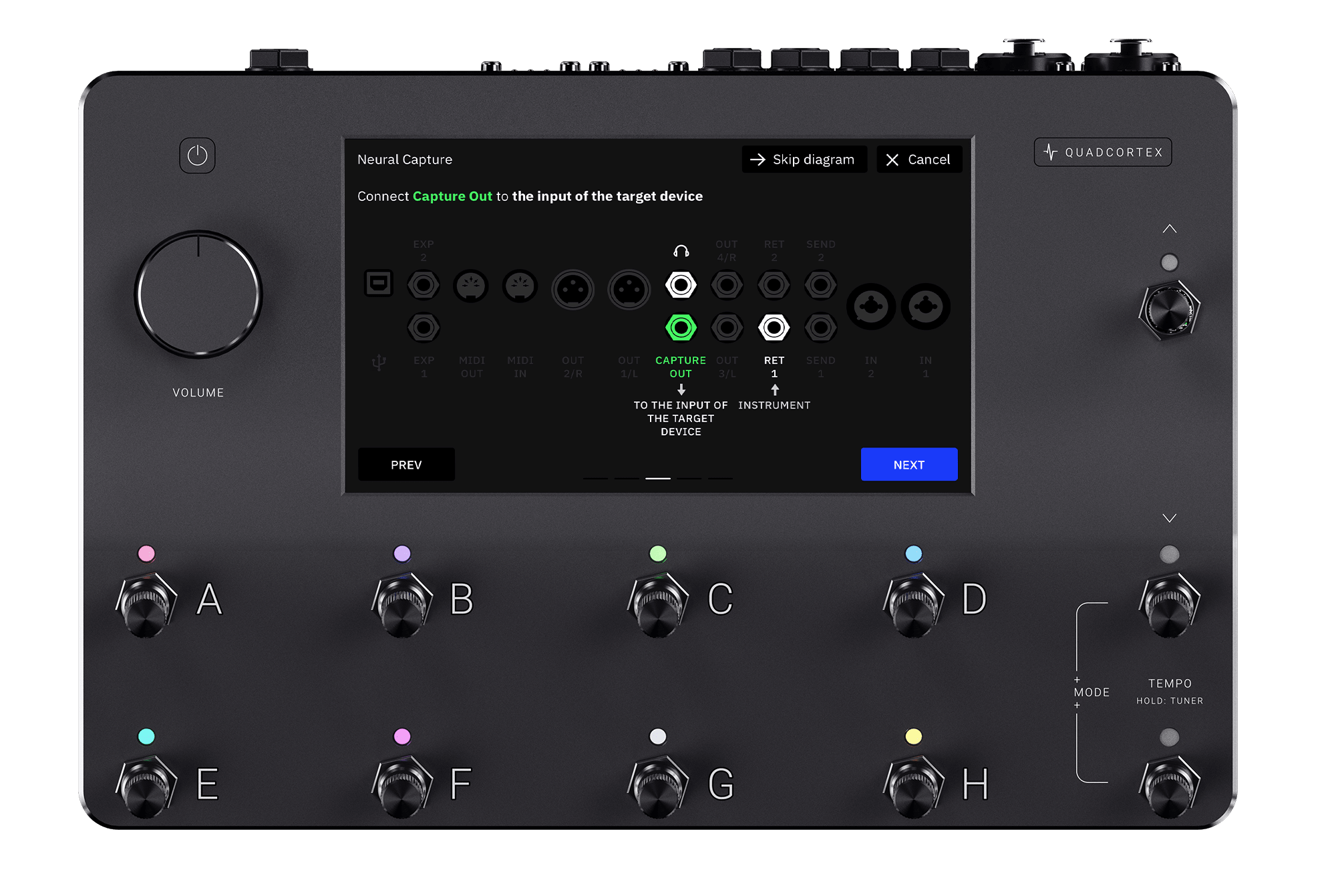

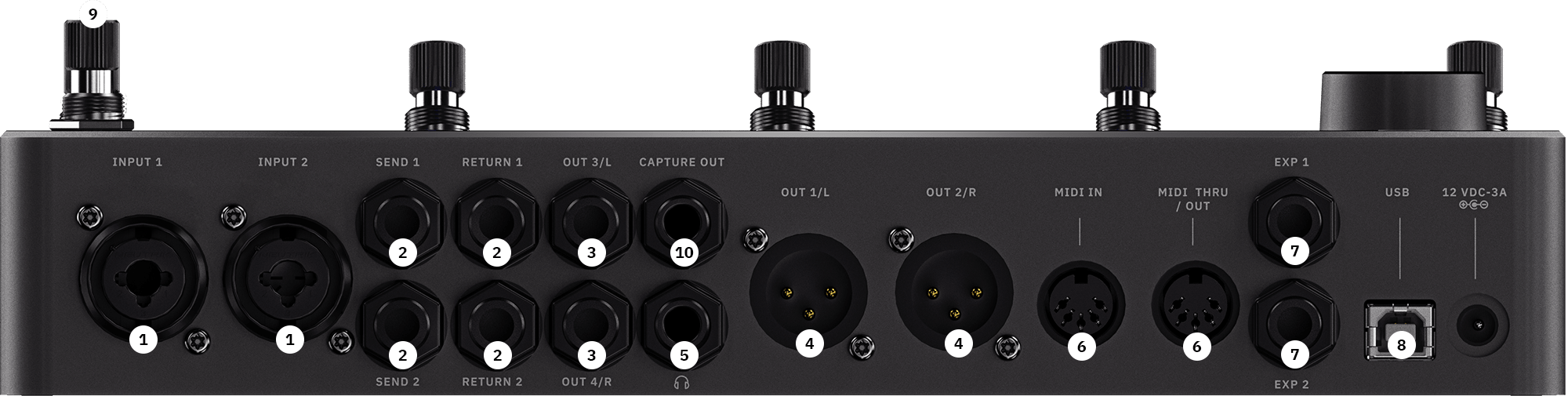

* Neural DSP -  Quad Cortex  (2021) - $1,699
https://neuraldsp.com/quad-cortex
크기 : 290 x 190 x 50mm
무게 : 1.9kg
https://www.sweetwater.com/store/detail/QuadCortex--neural-dsp-quad-cortex-quad-core-digital-effects-modeler-profiler-floorboard

Quad Cortex mini 제작중
https://unity.neuraldsp.com/t/need-more-ortexes/1985





//-------------------------------------

* AXE-FX lll (2018) ,  6.87kg  - 300만

https://www.fractalaudio.com/iii/





* AX8 (2015) , 5.4Kg - $1,100 - 250만

동시에 최대 8개

- 이펙트 + 앰프 모델





* FX8 Mark 2 (2016) , 5.2kg - 200만

- 이펙트 만 (앰프모델 없음)













//===============

TC Electronic

* TC Electronic  G-System (2005) - $899.99
http://www.tcelectronic.com/g-system/
Dimensions: 512.9mm x 265.9mm x 103.4mm
Weight: 7.83 kg



* TC Electronic Nova System (2008) - $465.54 (56만)
http://www.tcelectronic.com/nova-system/
Dimensions : 284 x89 x 267 mm
Weight : 1.85 kg

http://global.rakuten.com/en/store/k-gakki/item/tce-novasystem/?s-id=borderless_browsehist_en
 $376.14 (¥ 42,687) (45만)



tc_electronic_nova_system_manual_english.pdf

다운로드





//-----------------------------------------------------------------------------

//===========
* Korg
KORG PANDORA Stomp (2013) - 16만
    - 동시 7개
KORG PANDORA mini (2004) - 9만
Korg PX5D (2004) - 22만


//===========
* Vox
Vox Valvetronix ToneLab EX (2011), 3.0kg - 34만
Vox Valvetronix ToneLab ST (2009), 1.6kg - 23만









//==================================

Mooer



//---------------------------------

Mooer GE300 Lite (2021) , 2.1kg - $550 (85만)

http://www.mooeraudio.com/product/GE300Lite-239.html

- 13개 이펙트 블록, 315개 이팩트









//----------------------------------

* Mooer GE300 - 85만 ($800)

- 15개 동시

- 3 kg







//-----------------------------------------------------------------------------

* 이펙트 연결순서
